Manually Operated Fixture Kits

High-quality Mechanical Test Fixture Kits (MFK) by MT Test Solutions. Optimize your ICT and FCT workflows with our modular, easy-to-maintain, and customizable test fixtures designed for high-density boards.

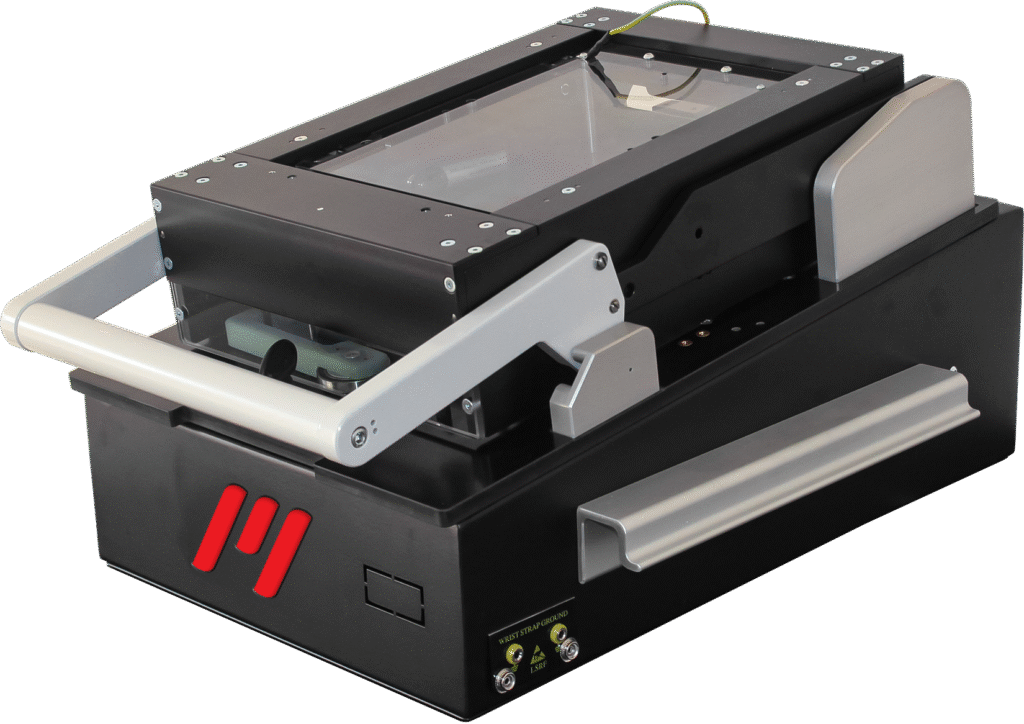

ND-MFS-D2-EXCH-PYL

External Dimension (width x depth x height) with Handles:

409 x 567 x 280 [mm]
16.102 x 22.323 x 11.024 [in]

Usable Area:

133 x 218 [mm]
5.236 x 8.583 [in]

Up to 1000 Test Probes
Big inner space for Optional Hardware
Ergonomic Handle for easy closing

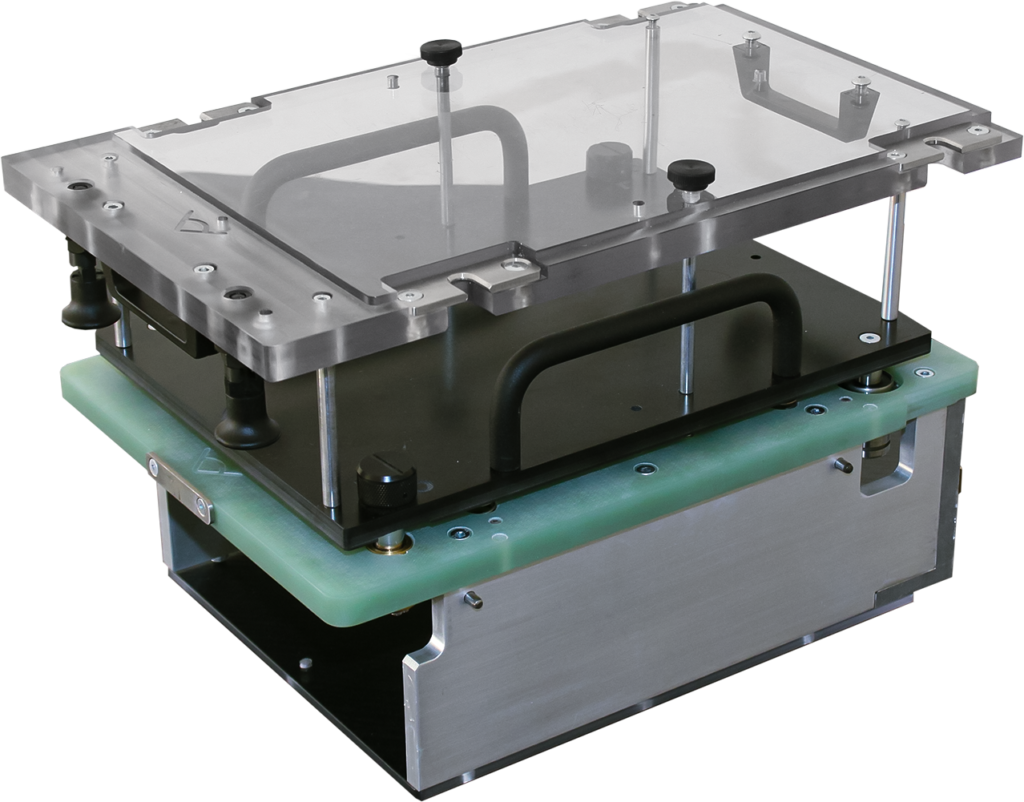

Exchangeable Kit is prepared with Pylon Interface Blocks
ESD Safe & Easy Maintenance
Quick Exchange System - Modular Fixture
Alum-A-Grip Handles for transport and lift

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

Here are all the available options to customize this fixture kit.

CUST-SET-Dx-(S/M/L)

Startup Set for ND-EXCH-Dx

CUST-SET-Dx-S

Small Startup Set for ND-EXCH-Dx

Item Code	Item Description	QTY	Unit
FIXT-PR-526	Push Rod L=57.3mm-M3 D=6mm	6	pcs
FIXT-PR-501	Push Rod L=57.3mm-M3 D=3mm	13	pcs
ME1344	Screw	19	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1458	Screw	5	pcs
MRB-001	Threaded Insert M3	5	pcs
ME1759	Compression Spring	4	pcs
ME1596	Antistatic Tap h2.5	19	pcs
RCP066 WR13	Receptacle	100	pcs
ST1000 LA53 M	Test probe	100	pcs

CUST-SET-Dx-M

Medium Startup Set for ND-EXCH-Dx

Item Code	Item Description	QTY	Unit
FIXT-PR-526	Push Rod L=57.3mm-M3 D=6mm	12	pcs
FIXT-PR-501	Push Rod L=57.3mm-M3 D=3mm	23	pcs
ME1344	Screw	35	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1458	Screw	5	pcs
MRB-001	Threaded Insert M3	5	pcs
ME1759	Compression Spring	4	pcs
ME1596	Antistatic Tap h2.5	35	pcs
ST1000 LA53 M	Test probe	200	pcs
RCP066 WR13	Receptacle	200	pcs

CUST-SET-Dx-L

Large Startup Set for ND-EXCH-Dx

Item Code	Item Description	QTY	Unit
FIXT-PR-526	Push Rod L=57.3mm-M3 D=6mm	17	pcs
FIXT-PR-501	Push Rod L=57.3mm-M3 D=3mm	33	pcs
ME1344	Screw	50	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1458	Screw	5	pcs
MRB-001	Threaded Insert M3	5	pcs
ME1759	Compression Spring	8	pcs
ME1596	Antistatic Tap h2.5	50	pcs
RCP066 WR13	Receptacle	300	pcs
ST1000 LA53 M	Test probe	300	pcs

CUST-SET-ND-MFS-Dx-A(S/M/L)

Advanced Customization Startup Set for ND-MFS-D2

Item Code	Description	Small Set(S)	Medium Set(M)	Large Set(L)	Unit
FIXT-PR-526	Push Rod D=6mm	4	5	6	pcs
FIXT-PR-501	Push Rod D=3mm	30	45	64	pcs
ME1344	Screw M3x20	34	45	64	pcs
FIXT-EXC-023	Excentric Positioner, Tall	4	4	4	pcs
FIXT-EXC-022	Excentric Positioner, Short	4	4	4	pcs
ME1406	Screw M3x12	8	8	8	pcs
MRB-001	Threaded Insert M3	8	8	8	pcs
ME1596	ESD PCB Support	40	60	80	pcs
RCP066 WR13	Socket / Receptacle	100	200	350	pcs
ST1000 LA53 M	Test Probe	100	200	350	pcs
ME1759	Spring d-1 x De-10,2 x L0-17,5	2	4	6	pcs
FIXT-FTP-023-0	Tooling Pin SFP	2	2	2	pcs
EE231	AWG30 KYNAR INSULATED WIRE (WIRE WRAPPING)	75	150	250	m
ME805	FIx-KL-14 Cable Clips	5	10	15	pcs
EE2297	Cable Ties Natur Small	10	20	40	pcs
EE3403	Cable Ties Mounts Adhesive/Screw Mount 21x21	5	10	15	pcs
ITA-ST-170-KT02	170 Pole Signal ITA Pylon Block	1	2	3	pcs
RCV-ST-170	170 Pole Signal Receiver Pylon Block	1	2	3	psc
FIXT-OC	MFS/MFT Optional Accessories Omron Counter	1	1	1	set
FIXT-CCS	Cover Closed Sensor	1	1	1	set
FIXT-MCIS	Mechanics Closed Inductive Sensor		1	1	set
FIXT-PCLS	Pneumatic Cover Lock Set		1	1	set
FIXT-GN-FTF16	Floating Transfer Field 16pol		1		set
FIXT-GN-FTF64	Floating Transfer Field 64pol		1	1	set
MU S002 D2 M12x1 24 V	Engraving Unit			1	pcs

More Customization Parts for ND-MFS-D2

Item Code	Description
FIXT-OC	MFS/MFT Optional Accessories Omron Counter
FIXT-CCS	Cover Closed Sensor
FIXT-MCIS	Mechanics Closed Inductive Sensor
FIXT-PCLS	Pneumatic Cover Lock Set
FIXT-SSS	MFS/MFT Optional Accessories Safety Switch Schmersal
FIXT-SCLS	MFS/MFT Optional Accessories Solenoid Cover Lock Set
FIXT-PCLSS	MFS/MFT Optional Accessories Pneumatic Cover Lock Set With Sensor
MU S002 D2 M12x1 12 V	Engraving Unit
MU S002 D2 M12x1 24 V	Engraving Unit
FIXT-SSU-S7/16	Side Stroke Unit, 7/16 Stroke
BS-3D	Barcode Stand 3D
EE2100	KEYENCE SR-710 Ultra-Compact 1D And 2D Code Reader
ND-MFS-D2-EXCH-PYL-MP	Mounting Plate for ND-MFS-D2 Fixture

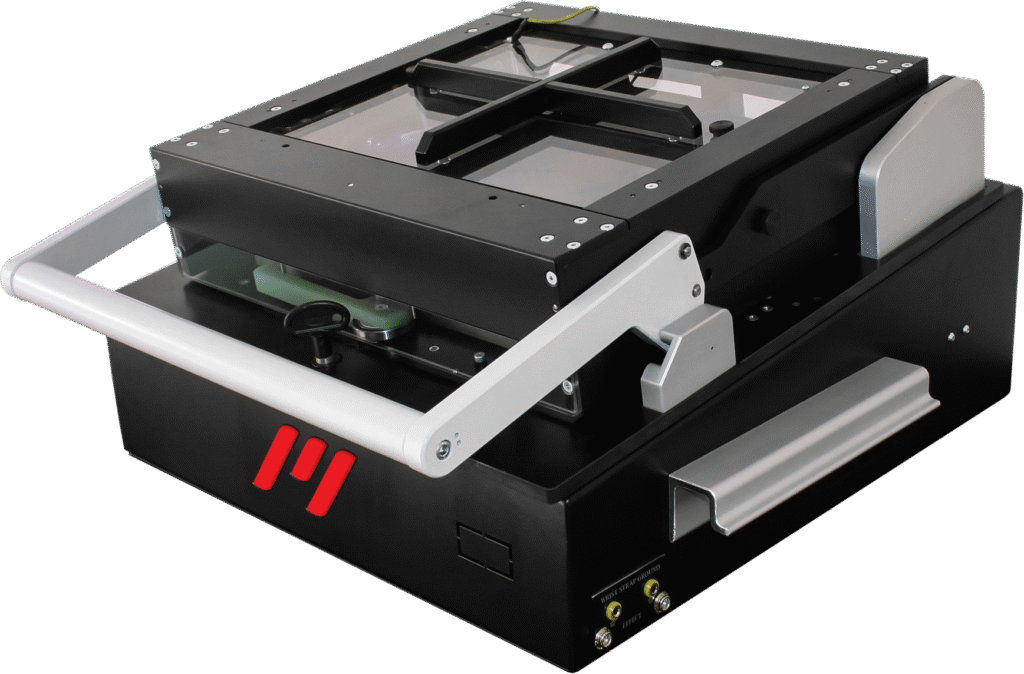

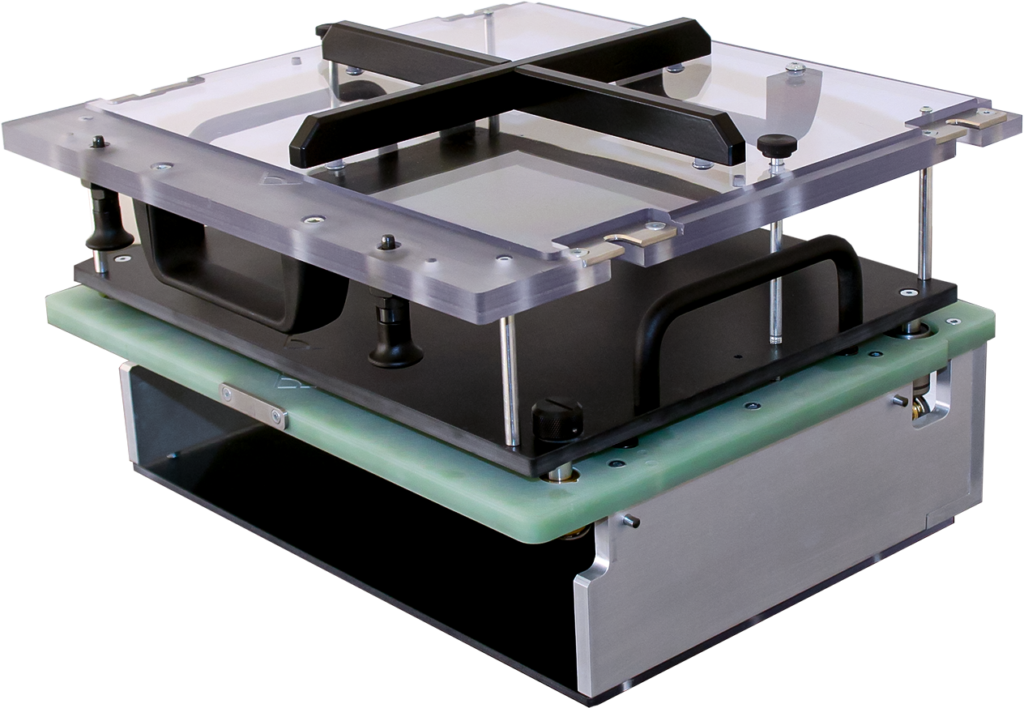

ND-MFS-D3-EXCH-PYL

External Dimension (width x depth x height) with Handles:

549 x 587 x 280 [mm]
21.614 x 23.110 x 11.024 [in]

Usable Area:

273 x 218 [mm]
10.748 in x 8.583 [in]

Big inner space for Optional Hardware
Ergonomic Handle for easy closing
Exchangeable Kit is prepared with Pylon Interface Blocks
ESD Safe & Easy Maintenance
Quick Exchange System - Modular Fixture
Alum-A-Grip Handles for transport and lift

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

Here are all the available options to customize this fixture kit.

CUST-SET-Dx-(S/M/L)

Startup Set for ND-EXCH-Dx

CUST-SET-Dx-S

Small Startup Set for ND-EXCH-Dx

Item Code	Item Description	QTY	Unit
FIXT-PR-526	Push Rod L=57.3mm-M3 D=6mm	6	pcs
FIXT-PR-501	Push Rod L=57.3mm-M3 D=3mm	13	pcs
ME1344	Screw	19	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1458	Screw	5	pcs
MRB-001	Threaded Insert M3	5	pcs
ME1759	Compression Spring	4	pcs
ME1596	Antistatic Tap h2.5	19	pcs
RCP066 WR13	Receptacle	100	pcs
ST1000 LA53 M	Test probe	100	pcs

CUST-SET-Dx-M

Medium Startup Set for ND-EXCH-Dx

Item Code	Item Description	QTY	Unit
FIXT-PR-526	Push Rod L=57.3mm-M3 D=6mm	12	pcs
FIXT-PR-501	Push Rod L=57.3mm-M3 D=3mm	23	pcs
ME1344	Screw	35	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1458	Screw	5	pcs
MRB-001	Threaded Insert M3	5	pcs
ME1759	Compression Spring	4	pcs
ME1596	Antistatic Tap h2.5	35	pcs
ST1000 LA53 M	Test probe	200	pcs
RCP066 WR13	Receptacle	200	pcs

CUST-SET-Dx-L

Large Startup Set for ND-EXCH-Dx

Item Code	Item Description	QTY	Unit
FIXT-PR-526	Push Rod L=57.3mm-M3 D=6mm	17	pcs
FIXT-PR-501	Push Rod L=57.3mm-M3 D=3mm	33	pcs
ME1344	Screw	50	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1458	Screw	5	pcs
MRB-001	Threaded Insert M3	5	pcs
ME1759	Compression Spring	8	pcs
ME1596	Antistatic Tap h2.5	50	pcs
RCP066 WR13	Receptacle	300	pcs
ST1000 LA53 M	Test probe	300	pcs

CUST-SET-ND-MFS-Dx-A(S/M/L)

Advanced Customization Startup Set for ND-MFS-D3

Item Code	Description	Small Set(S)	Medium Set(M)	Large Set(L)	Unit
FIXT-PR-526	Push Rod D=6mm	4	5	6	pcs
FIXT-PR-501	Push Rod D=3mm	30	45	64	pcs
ME1344	Screw M3x20	34	45	64	pcs
FIXT-EXC-023	Excentric Positioner, Tall	4	4	4	pcs
FIXT-EXC-022	Excentric Positioner, Short	4	4	4	pcs
ME1406	Screw M3x12	8	8	8	pcs
MRB-001	Threaded Insert M3	8	8	8	pcs
ME1596	ESD PCB Support	40	60	80	pcs
RCP066 WR13	Socket / Receptacle	100	200	350	pcs
ST1000 LA53 M	Test Probe	100	200	350	pcs
ME1759	Spring d-1 x De-10,2 x L0-17,5	2	4	6	pcs
FIXT-FTP-023-0	Tooling Pin SFP	2	2	2	pcs
EE231	AWG30 KYNAR INSULATED WIRE (WIRE WRAPPING)	75	150	250	m
ME805	FIx-KL-14 Cable Clips	5	10	15	pcs
EE2297	Cable Ties Natur Small	10	20	40	pcs
EE3403	Cable Ties Mounts Adhesive/Screw Mount 21x21	5	10	15	pcs
ITA-ST-170-KT02	170 Pole Signal ITA Pylon Block	1	2	3	pcs
RCV-ST-170	170 Pole Signal Receiver Pylon Block	1	2	3	psc
FIXT-OC	MFS/MFT Optional Accessories Omron Counter	1	1	1	set
FIXT-CCS	Cover Closed Sensor	1	1	1	set
FIXT-MCIS	Mechanics Closed Inductive Sensor		1	1	set
FIXT-PCLS	Pneumatic Cover Lock Set		1	1	set
FIXT-GN-FTF16	Floating Transfer Field 16pol		1		set
FIXT-GN-FTF64	Floating Transfer Field 64pol		1	1	set
MU S002 D2 M12x1 24 V	Engraving Unit			1	pcs

More Customization Parts for ND-MFS-D3

Item Code	Description
FIXT-OC	MFS/MFT Optional Accessories Omron Counter
FIXT-CCS	Cover Closed Sensor
FIXT-MCIS	Mechanics Closed Inductive Sensor
FIXT-PCLS	Pneumatic Cover Lock Set
FIXT-SSS	MFS/MFT Optional Accessories Safety Switch Schmersal
FIXT-SCLS	MFS/MFT Optional Accessories Solenoid Cover Lock Set
FIXT-PCLSS	MFS/MFT Optional Accessories Pneumatic Cover Lock Set With Sensor
MU S002 D2 M12x1 12 V	Engraving Unit
MU S002 D2 M12x1 24 V	Engraving Unit
FIXT-SSU-S7/16	Side Stroke Unit, 7/16 Stroke
BS-3D	Barcode Stand 3D
EE2100	KEYENCE SR-710 Ultra-Compact 1D And 2D Code Reader
ND-MFS-D3-EXCH-PYL-MP	Mounting Plate for ND-MFS-D3 Fixture
PYL-ITA-810	Pylon Interface for MFS-D3

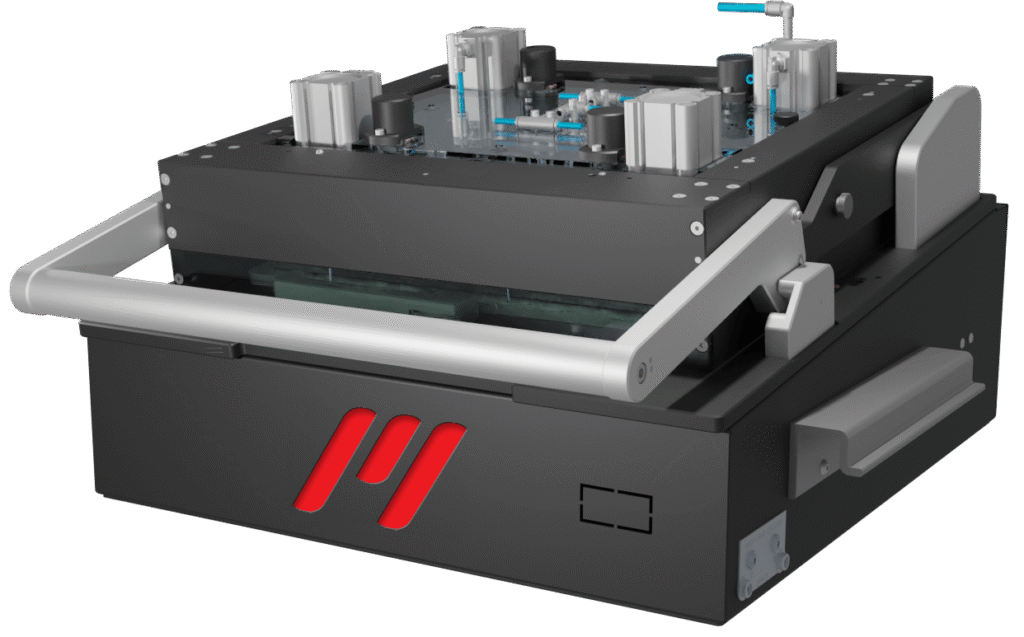

ND-MFS-D3-PYL-DUAL STAGE

External Dimension (width x depth x height) with Handles:

549 x 587 x 326 [mm]
21.614 x 23.110 x 12.834 [in]

Usable Area:

224 x 178 [mm]
8.819 x 7.007 [in]

Maximum Force:

800 N

Big inner space for Optional Hardware
Ergonomic Handle for easy closing
Exchangeable Kit is prepared with Pylon Interface Blocks
ESD Safe & Easy Maintenance
Quick Exchange System - Modular Fixture
Alum-A-Grip Handles for transport and lift

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

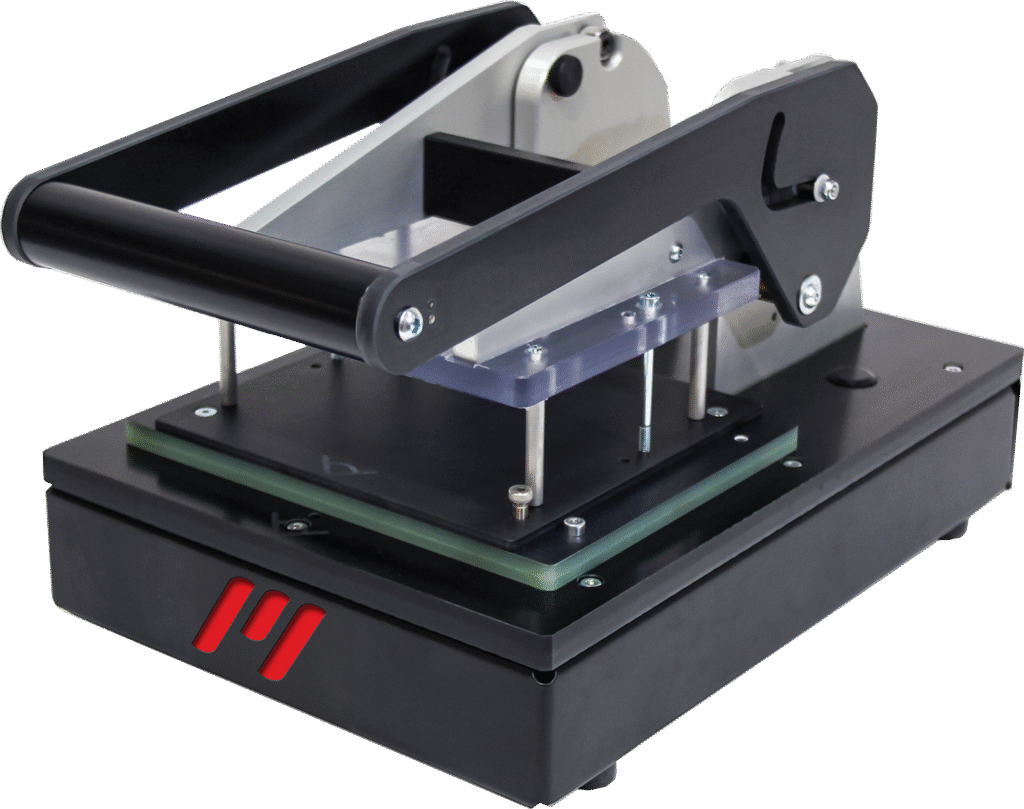

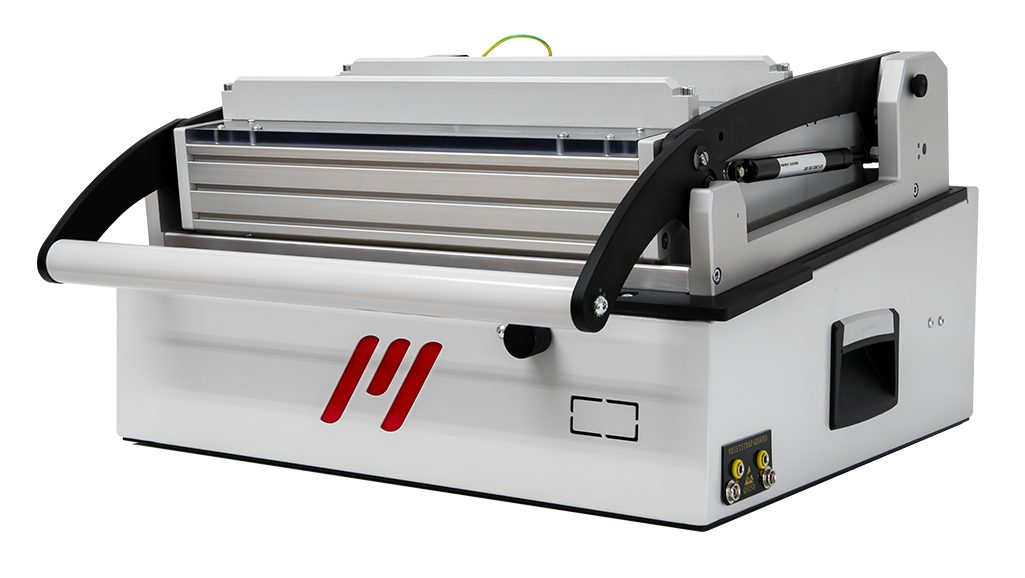

MFS-EM-S3

External Dimension (width x depth x height) with Handles:

480 x 542 x 279 [mm]
18.897 x 21.338 x 10.984 [in]

Usable Area:

280 mm x 230 [mm]
11.023 in x 9.055 [in]

Maximum Force:

600 N

Exchangeable Kit: MFS-EXCH-EM-S3
Easy Mechanics Manual Fixture
ESD Safe

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

Whatch the video to see how it works.

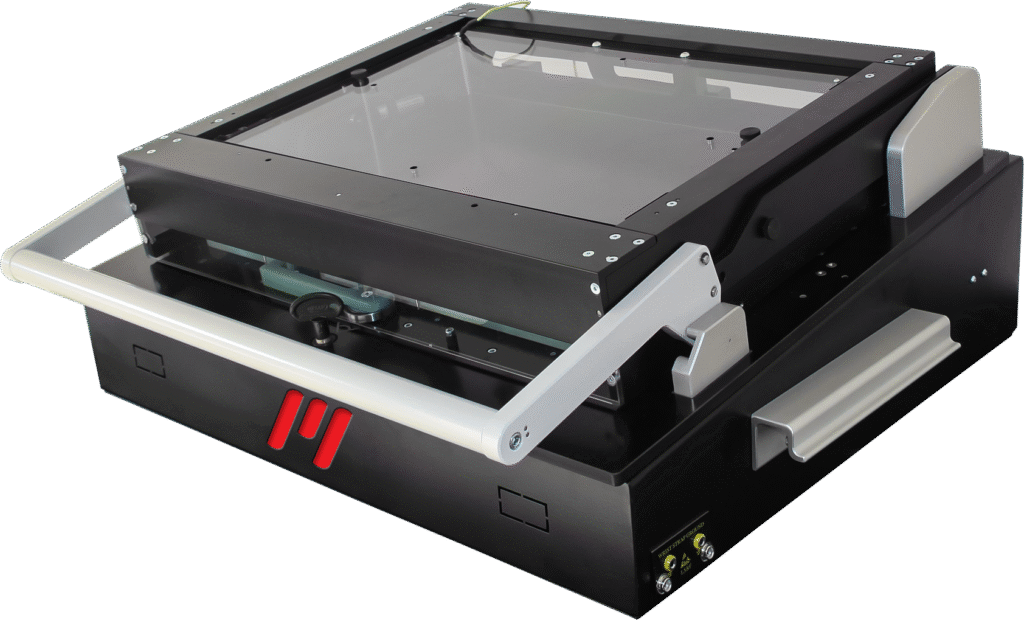

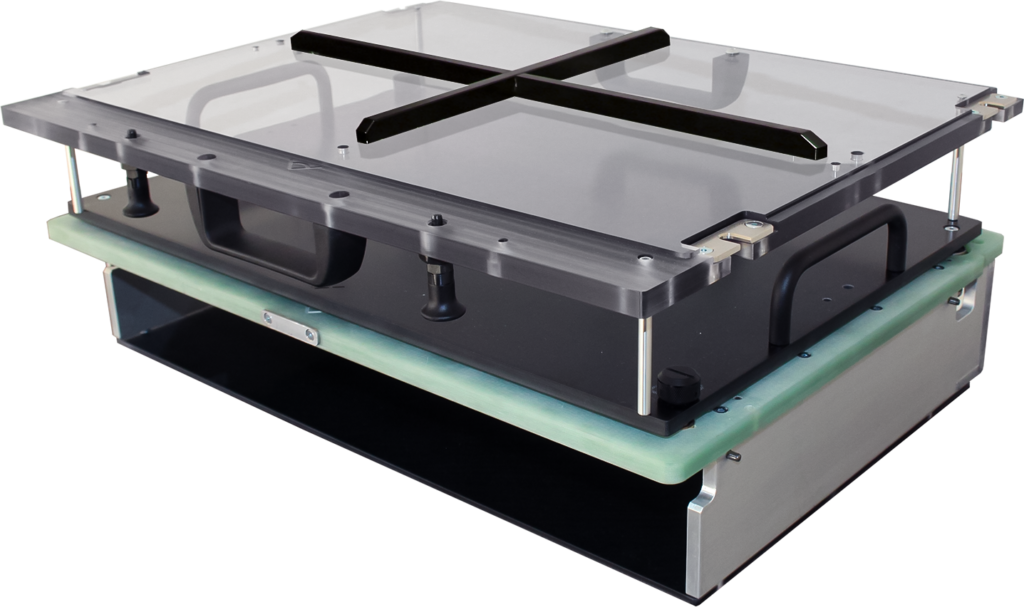

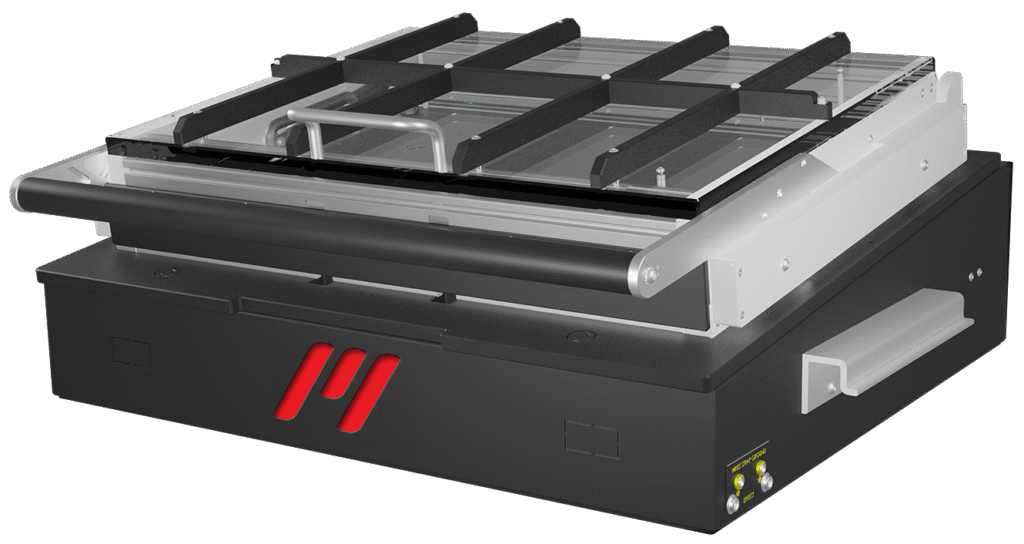

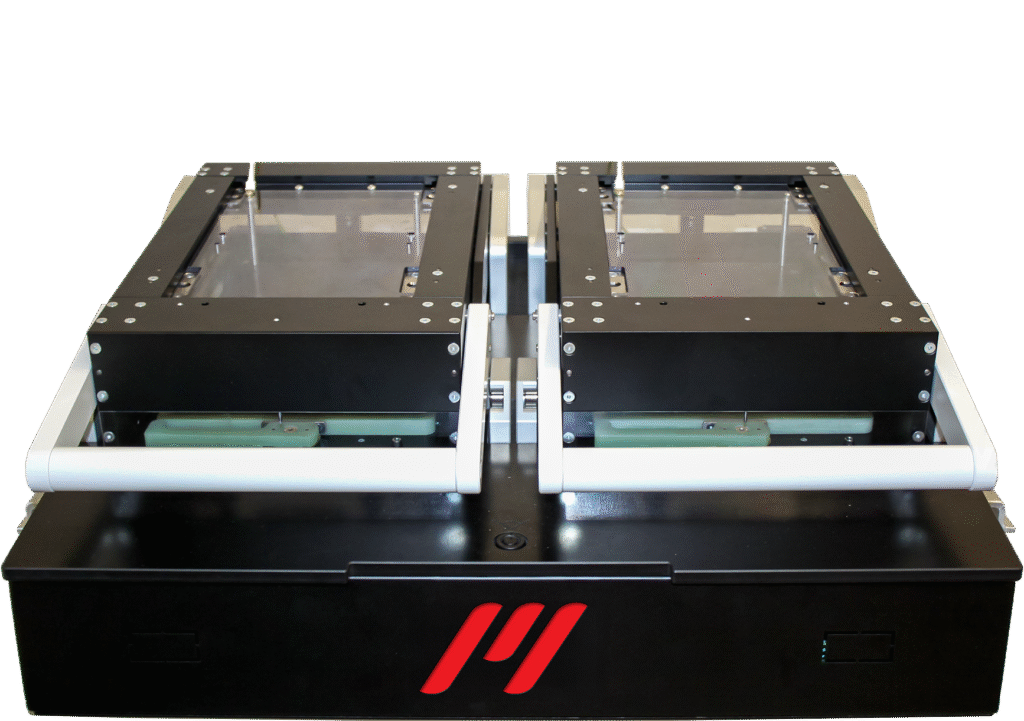

ND-MFS-D4-EXCH-PYL

External Dimension (width x depth x height) with Handles:

729 mm x 656 mm x 280 [mm]
28.701 in x 25.827 in x 11.024 [in]

Usable Area:

433 x 288 [mm]
17.047 in x 11.339 [in]

Two Independently Operated Cover Units
Up to 1000 Test Probes
Big inner space for Optional Hardware
Ergonomic Handle for easy closing
Exchangeable Kit is prepared with Pylon Interface Blocks
ESD Safe & Easy Maintenance
Quick Exchange System - Modular Fixture
Alum-A-Grip Handles for transport and lift

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

Here are all the available options to customize this fixture kit.

CUST-SET-Dx-(S/M/L)

Startup Set for ND-EXCH-Dx

CUST-SET-Dx-S

Small Startup Set for ND-EXCH-Dx

Item Code	Item Description	QTY	Unit
FIXT-PR-526	Push Rod L=57.3mm-M3 D=6mm	6	pcs
FIXT-PR-501	Push Rod L=57.3mm-M3 D=3mm	13	pcs
ME1344	Screw	19	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1458	Screw	5	pcs
MRB-001	Threaded Insert M3	5	pcs
ME1759	Compression Spring	4	pcs
ME1596	Antistatic Tap h2.5	19	pcs
RCP066 WR13	Receptacle	100	pcs
ST1000 LA53 M	Test probe	100	pcs

CUST-SET-Dx-M

Medium Startup Set for ND-EXCH-Dx

Item Code	Item Description	QTY	Unit
FIXT-PR-526	Push Rod L=57.3mm-M3 D=6mm	12	pcs
FIXT-PR-501	Push Rod L=57.3mm-M3 D=3mm	23	pcs
ME1344	Screw	35	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1458	Screw	5	pcs
MRB-001	Threaded Insert M3	5	pcs
ME1759	Compression Spring	4	pcs
ME1596	Antistatic Tap h2.5	35	pcs
ST1000 LA53 M	Test probe	200	pcs
RCP066 WR13	Receptacle	200	pcs

CUST-SET-Dx-L

Large Startup Set for ND-EXCH-Dx

Item Code	Item Description	QTY	Unit
FIXT-PR-526	Push Rod L=57.3mm-M3 D=6mm	17	pcs
FIXT-PR-501	Push Rod L=57.3mm-M3 D=3mm	33	pcs
ME1344	Screw	50	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1458	Screw	5	pcs
MRB-001	Threaded Insert M3	5	pcs
ME1759	Compression Spring	8	pcs
ME1596	Antistatic Tap h2.5	50	pcs
RCP066 WR13	Receptacle	300	pcs
ST1000 LA53 M	Test probe	300	pcs

CUST-SET-ND-MFS-Dx-A(S/M/L)

Advanced Customization Startup Set for ND-MFS-D4

Item Code	Description	Small Set(S)	Medium Set(M)	Large Set(L)	Unit
FIXT-PR-526	Push Rod D=6mm	4	5	6	pcs
FIXT-PR-501	Push Rod D=3mm	30	45	64	pcs
ME1344	Screw M3x20	34	45	64	pcs
FIXT-EXC-023	Excentric Positioner, Tall	4	4	4	pcs
FIXT-EXC-022	Excentric Positioner, Short	4	4	4	pcs
ME1406	Screw M3x12	8	8	8	pcs
MRB-001	Threaded Insert M3	8	8	8	pcs
ME1596	ESD PCB Support	40	60	80	pcs
RCP066 WR13	Socket / Receptacle	100	200	350	pcs
ST1000 LA53 M	Test Probe	100	200	350	pcs
ME1759	Spring d-1 x De-10,2 x L0-17,5	2	4	6	pcs
FIXT-FTP-023-0	Tooling Pin SFP	2	2	2	pcs
EE231	AWG30 KYNAR INSULATED WIRE (WIRE WRAPPING)	75	150	250	m
ME805	FIx-KL-14 Cable Clips	5	10	15	pcs
EE2297	Cable Ties Natur Small	10	20	40	pcs
EE3403	Cable Ties Mounts Adhesive/Screw Mount 21x21	5	10	15	pcs
ITA-ST-170-KT02	170 Pole Signal ITA Pylon Block	1	2	3	pcs
RCV-ST-170	170 Pole Signal Receiver Pylon Block	1	2	3	psc
FIXT-OC	MFS/MFT Optional Accessories Omron Counter	1	1	1	set
FIXT-CCS	Cover Closed Sensor	1	1	1	set
FIXT-MCIS	Mechanics Closed Inductive Sensor		1	1	set
FIXT-PCLS	Pneumatic Cover Lock Set		1	1	set
FIXT-GN-FTF16	Floating Transfer Field 16pol		1		set
FIXT-GN-FTF64	Floating Transfer Field 64pol		1	1	set
MU S002 D2 M12x1 24 V	Engraving Unit			1	pcs

More Customization Parts for ND-MFS-D4

Item Code	Description
FIXT-OC	MFS/MFT Optional Accessories Omron Counter
FIXT-CCS	Cover Closed Sensor
FIXT-MCIS	Mechanics Closed Inductive Sensor
FIXT-PCLS	Pneumatic Cover Lock Set
FIXT-SSS	MFS/MFT Optional Accessories Safety Switch Schmersal
FIXT-SCLS	MFS/MFT Optional Accessories Solenoid Cover Lock Set
FIXT-PCLSS	MFS/MFT Optional Accessories Pneumatic Cover Lock Set With Sensor
MU S002 D2 M12x1 12 V	Engraving Unit
MU S002 D2 M12x1 24 V	Engraving Unit
FIXT-SSU-S7/16	Side Stroke Unit, 7/16 Stroke
BS-3D	Barcode Stand 3D
EE2100	KEYENCE SR-710 Ultra-Compact 1D And 2D Code Reader
ND-MFS-D4-EXCH-PYL-MP	Mounting Plate for ND-MFS-D4 Fixture
PYL-ITA-820	Pylon Interface for MFS-D4

HL-MFS-NED4

External Dimension (width x depth x height) with Handles:

729 x 635 x 295 [mm]
28.701 x 25.000 x 11.614 [in]

Usable Area:

433 x 288 [mm]
17.047 x 11.339 [in]

Maximum Force:

3000 N

Strong construction
Big inner space for Optional Hardware
Ergonomic Handle for easy closing
Non-Exchangeable Kit with optional inner interface
ESD Safe & Easy Maintenance
Quick Exchange System - Modular Fixture
Alum-A-Grip Handles for transport and lift

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

ND-MFT-D4-EXCH-PYL

External Dimension (width x depth x height) with Handles:

729 x 584 x 280 [mm]
28.701 x 22.992 x 11.024 [in]

Usable Area for ne Exchangeable Unit:

133 x 218 [mm]
5.236 in x 8.583 [in]

Two Independently Operated Cover Units
Up to 1000 Test Probes
Big inner space for Optional Hardware
Ergonomic Handle for easy closing
Exchangeable Unit is built to work with Pylon Interface Blocks
ESD Safe & Easy Maintenance
Quick Exchange System - Modular Set up
Alum-A-Grip Handles for transport and lift

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

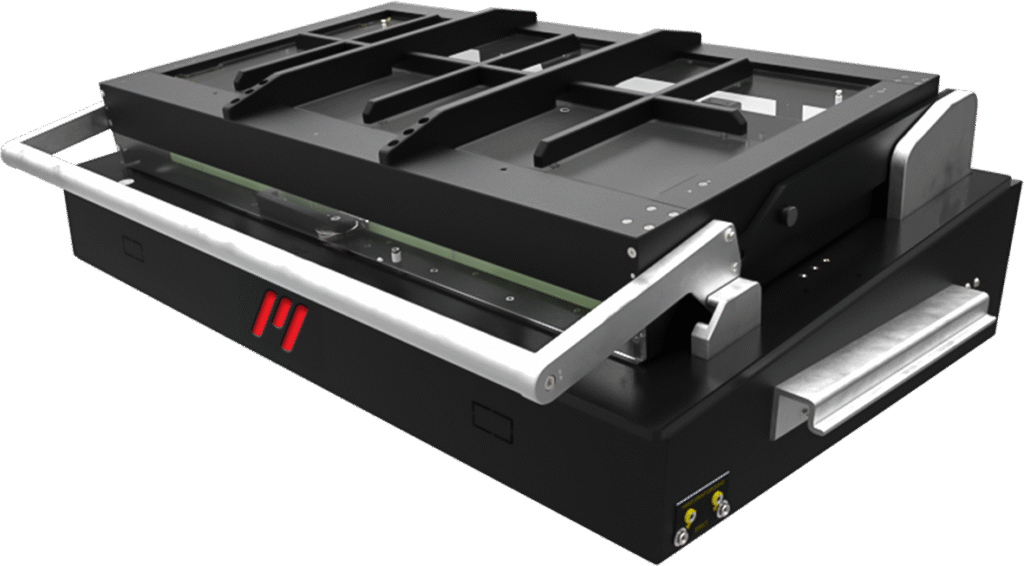

ND-MFS-D5-EXCH-PYL

External Dimension (width x depth x height) with Handles:

1009 x 656 x 300 [mm]
39.724 x 25.827 x 11.811 [in]

Usable Area:

640 x 288 [mm]
25.196 x 11.338 [in]

Big inner space for Optional Hardware
Ergonomic Handle for easy closing
Exchangeable Kit is prepared with Pylon Interface Blocks
ESD Safe & Easy Maintenance
Quick Exchange System - Modular Fixture
Alum-A-Grip Handles for transport and lift

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

Hand Press Fixture Kits

HPS-12

Housing Type
- Straight with Single Well
Maximal Usable Area
- 125 x 125 [mm]
  4.921 x 4.921 [in]
Contact Force Generation
- Manual
Exchangeable Kit
- EXCH - HPS - 12
Contact Force
- maximum 300 N
Opening Angle (Drive Unit)
- 80°
Weight (HPS-12)
- approx. 3.4 kg
Weight (EXCH-HPS-12)
- approx. 1 kg
Ergonomic Handle for easy closing
Easy Maintenance & ESD Safe (optional)

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

Here are all the available options to customize this fixture kit.

CUST-SET-HPS-x(S/L)

Startup Set for HPS-x

CUST-SET-HPS-x-S

Small Startup Set for HPS-x

Item Code	Item Description	QTY	Unit
FIXT-PR-538	Push Rod L=39.4mm-M3 D=6mm	3	pcs
FIXT-PR-527	Push Rod L=39.4mm-M3 D=3mm	8	pcs
ME1448	Screw M3x16	11	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1390	Screw M3x10	5	pcs
MRB-013	Threaded Insert M3	5	pcs
ME1596	Antistatic Tap h2.5	11	pcs
RCP066 WR08	Receptacle	50	pcs
ST1000 LA53 M	Test probe	50	pcs

CUST-SET-HPS-x-L

Large Startup Set for HPS-x

Item Code	Item Description	QTY	Unit
FIXT-PR-538	Push Rod L=39.4mm-M3 D=6mm	9	pcs
FIXT-PR-527	Push Rod L=39.4mm-M3 D=3mm	19	pcs
ME1448	Screw M3x16	28	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1390	Screw M3x10	5	pcs
MRB-013	Threaded Insert M3	5	pcs
ME1596	Antistatic Tap h2.5	28	pcs
RCP066 WR08	Receptacle	150	pcs
ST1000 LA53 M	Test probe	150	pcs

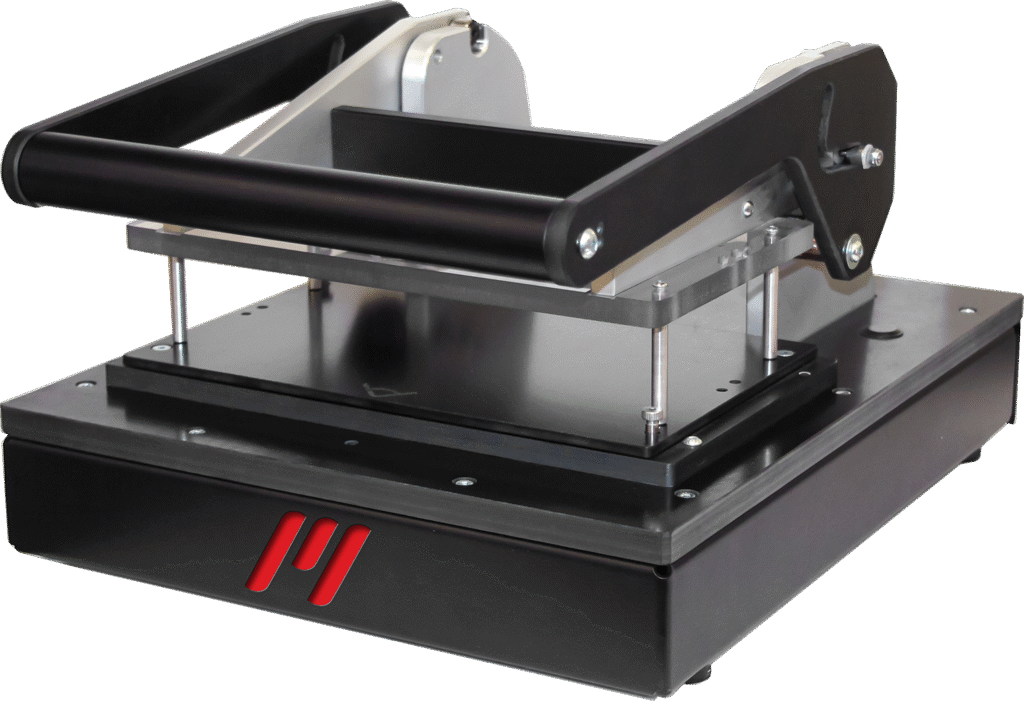

HPS-25

Housing Type
- Straight with Single Well
Maximal Usable Area
- 200 x 125 [mm]
  7.874 x 4.921 [in]
Contact Force Generation
- Manual
Exchangeable Kit
- EXCH - HPS - 25
Paralell Contact Stroke
- 6.4 mm
  0.253 in
Contact Force
- maximum 300 N
Max. Component Height
- 30 mm
  1.181 in
  *(PCB is 1.60 mm [0.063 in] thick)
Opening Angle (Drive Unit)
- 80°
Weight
- approx. 4 kg
Ergonomic Handle for easy closing
Easy Maintenance & ESD Safe (optional)

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

Here are all the available options to customize this fixture kit.

CUST-SET-HPS-x(S/L)

Startup Set for HPS-x

CUST-SET-HPS-x-S

Small Startup Set for HPS-x

Item Code	Item Description	QTY	Unit
FIXT-PR-538	Push Rod L=39.4mm-M3 D=6mm	3	pcs
FIXT-PR-527	Push Rod L=39.4mm-M3 D=3mm	8	pcs
ME1448	Screw M3x16	11	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1390	Screw M3x10	5	pcs
MRB-013	Threaded Insert M3	5	pcs
ME1596	Antistatic Tap h2.5	11	pcs
RCP066 WR08	Receptacle	50	pcs
ST1000 LA53 M	Test probe	50	pcs

CUST-SET-HPS-x-L

Large Startup Set for HPS-x

Item Code	Item Description	QTY	Unit
FIXT-PR-538	Push Rod L=39.4mm-M3 D=6mm	9	pcs
FIXT-PR-527	Push Rod L=39.4mm-M3 D=3mm	19	pcs
ME1448	Screw M3x16	28	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1390	Screw M3x10	5	pcs
MRB-013	Threaded Insert M3	5	pcs
ME1596	Antistatic Tap h2.5	28	pcs
RCP066 WR08	Receptacle	150	pcs
ST1000 LA53 M	Test probe	150	pcs

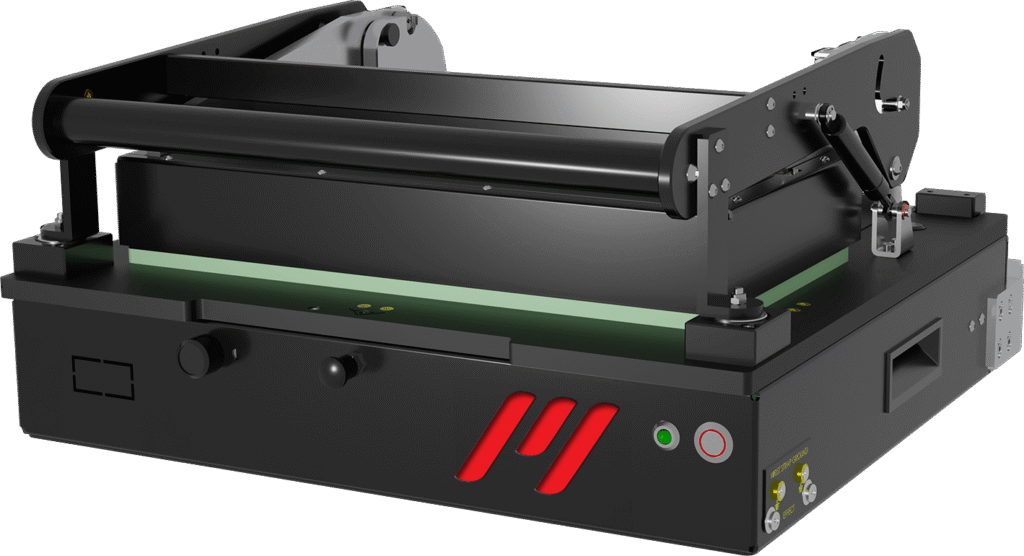

HPS-34-TC

Housing Type
- Straight with Single Well
Maximal Usable Area
- 340 x 166 [mm] or 246 x 196 [mm]
  13.385 x 6.535 [in] or 9.685 x 7.716 [in]
Contact Force Generation
- Manual
Exchangeable Kit
- EXCH-HPS-34-TC
Paralell Contact Stroke
- 6.4 mm
  0.253 in
Contact Force
- maximum 300 N
Max. Component Height
- 30 mm
  1.181 in
- *(PCB is 1.60 mm [0.063 in] thick)
Opening Angle (Drive Unit)
- 80°
Weight
- approx. 9.8 kg [21.605 lbs]
Ergonomic Handle for easy closing

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

Here are all the available options to customize this fixture kit.

CUST-SET-HPS-x(S/L)

Startup Set for HPS-x

CUST-SET-HPS-x-S

Small Startup Set for HPS-x

Item Code	Item Description	QTY	Unit
FIXT-PR-538	Push Rod L=39.4mm-M3 D=6mm	3	pcs
FIXT-PR-527	Push Rod L=39.4mm-M3 D=3mm	8	pcs
ME1448	Screw M3x16	11	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1390	Screw M3x10	5	pcs
MRB-013	Threaded Insert M3	5	pcs
ME1596	Antistatic Tap h2.5	11	pcs
RCP066 WR08	Receptacle	50	pcs
ST1000 LA53 M	Test probe	50	pcs

CUST-SET-HPS-x-L

Large Startup Set for HPS-x

Item Code	Item Description	QTY	Unit
FIXT-PR-538	Push Rod L=39.4mm-M3 D=6mm	9	pcs
FIXT-PR-527	Push Rod L=39.4mm-M3 D=3mm	19	pcs
ME1448	Screw M3x16	28	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1390	Screw M3x10	5	pcs
MRB-013	Threaded Insert M3	5	pcs
ME1596	Antistatic Tap h2.5	28	pcs
RCP066 WR08	Receptacle	150	pcs
ST1000 LA53 M	Test probe	150	pcs

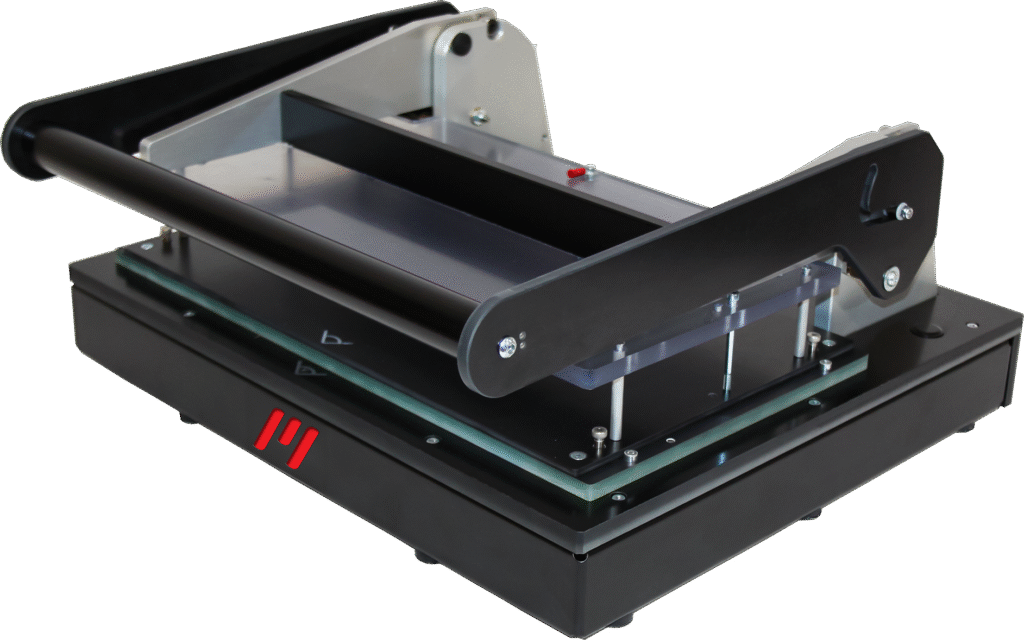

HPS-35L

Housing Type
- Straight with Single Well
Maximal Usable Area
- 200 x 350 [mm]
  7.874 x 13.779 [in]
Contact Force Generation
- Manual
Exchangeable Kit
- EXCH - HPS - 35L
Contact Force
- maximum 300 N
Opening Angle (Drive Unit)
- 80°
Weight (HPS-35L)
- approx. 5.5 kg
Weight (EXCH-HPS-35L)
- approx. 3.3 kg
Ergonomic Handle for easy closing
Easy Maintenance & ESD Safe (optional)

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

Here are all the available options to customize this fixture kit.

CUST-SET-HPS-x(S/L)

Startup Set for HPS-x

CUST-SET-HPS-x-S

Small Startup Set for HPS-x

Item Code	Item Description	QTY	Unit
FIXT-PR-538	Push Rod L=39.4mm-M3 D=6mm	3	pcs
FIXT-PR-527	Push Rod L=39.4mm-M3 D=3mm	8	pcs
ME1448	Screw M3x16	11	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1390	Screw M3x10	5	pcs
MRB-013	Threaded Insert M3	5	pcs
ME1596	Antistatic Tap h2.5	11	pcs
RCP066 WR08	Receptacle	50	pcs
ST1000 LA53 M	Test probe	50	pcs

CUST-SET-HPS-x-L

Large Startup Set for HPS-x

Item Code	Item Description	QTY	Unit
FIXT-PR-538	Push Rod L=39.4mm-M3 D=6mm	9	pcs
FIXT-PR-527	Push Rod L=39.4mm-M3 D=3mm	19	pcs
ME1448	Screw M3x16	28	pcs
FIXT-EXC-023	Excentric Positioner Top Screw	3	pcs
FIXT-EXC-022	Excentric Positioner Top Screw	2	pcs
ME1390	Screw M3x10	5	pcs
MRB-013	Threaded Insert M3	5	pcs
ME1596	Antistatic Tap h2.5	28	pcs
RCP066 WR08	Receptacle	150	pcs
ST1000 LA53 M	Test probe	150	pcs
