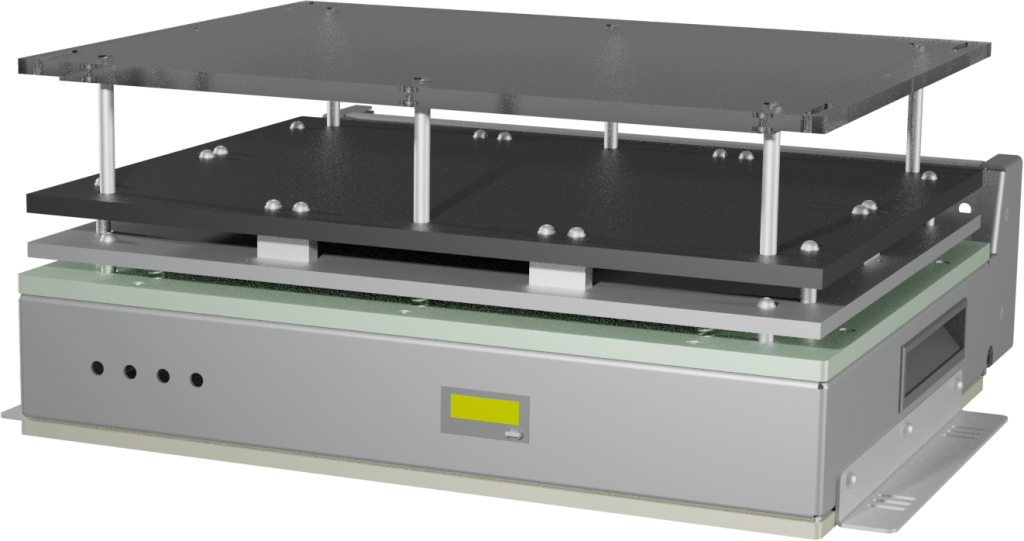

PDFS-TR518
Details
- External Dimension (width x depth x height) with Handles:
-
510 x 410 x 205 [mm]
20.08 x 16.15 x 8.07 [in] - DUT sizes:
-
385 (max.) x 255 (max.) [mm]
15.15 (max.) x 10 (max.) [in] - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 1920 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

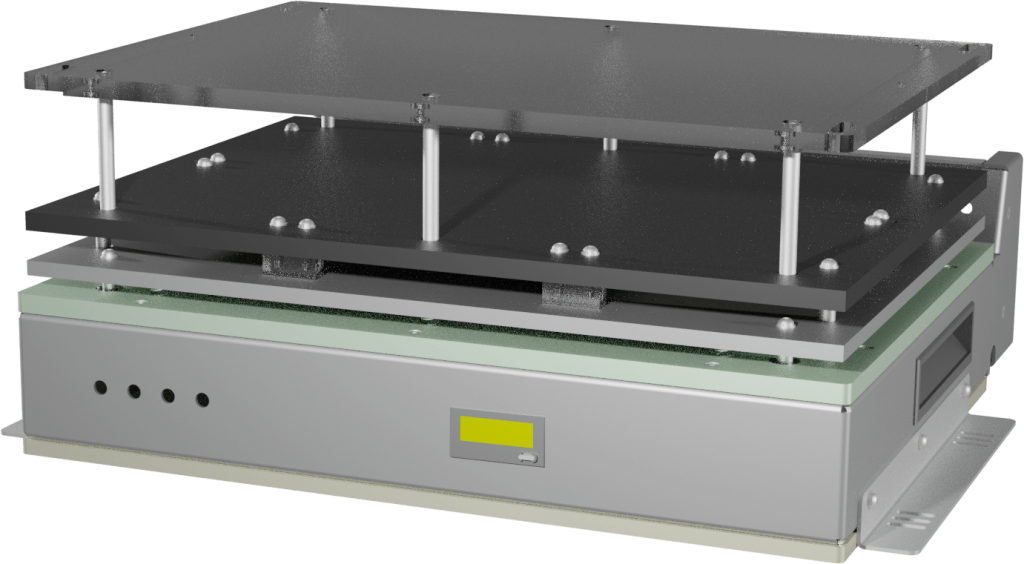

PDFS-TR518E
Details
- External Dimension (width x depth x height) with Handles:
- 510 x 410 x 205 [mm]
20.08 x 16.15 x 8.07 [in] - DUT sizes:
- 385 (max.) x 255 (max.) [mm]
15.15 (max.) x 10 (max.) [in] - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 1920 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

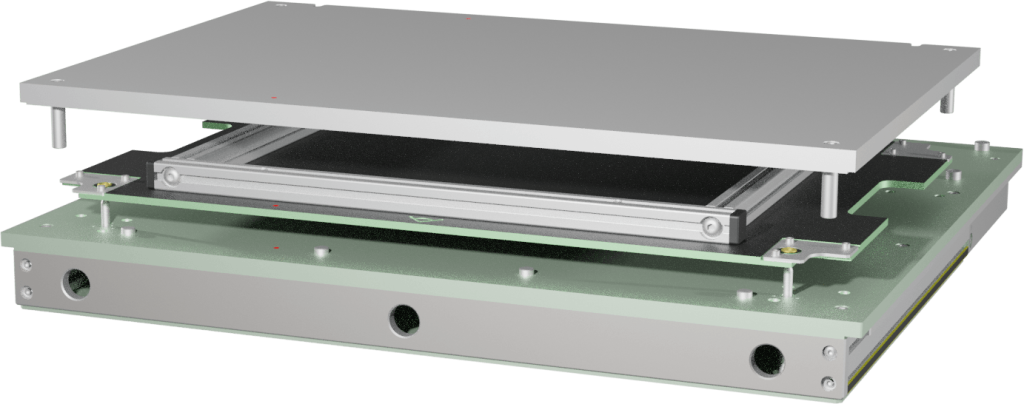

PDFS-2A-SPEA3030
Details
- External Dimension (width x depth x height) with Handles:
-
620 x 560 x 114 [mm] in case of bottom test aprox.
24.41 x 22.04 x 4.48 [in] -
620 x 560 x 186 [mm] in case of top test
24.41 x 22.04 x 7.32 [in] - Useable Area:
-
375 x 300 [mm]
14.76 x 11.81 [in] - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 3168 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

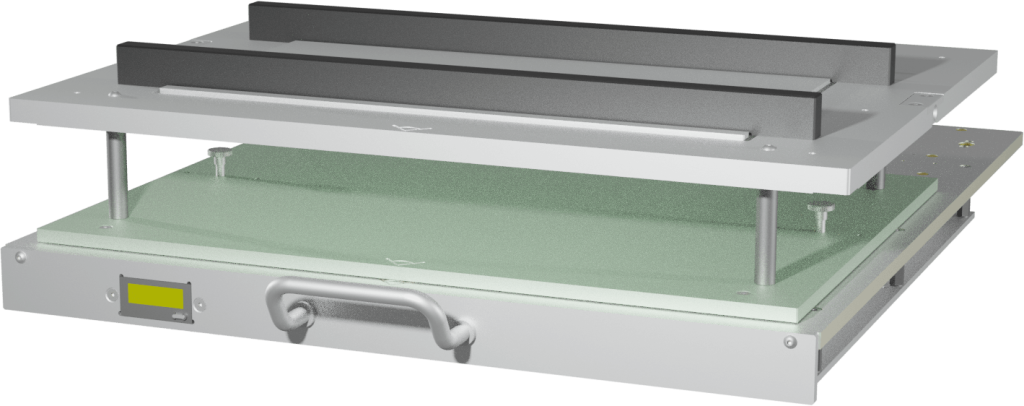

PDFS-SEICA
Details
- External Dimension (width x depth x height) with Handles:
- 525 x 636 x 153 [mm]
20.67 x 25.04 x 6.02 [in] - Useable Area:
- 265 x 200 [mm]
10.43 x 7.87 [in] - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 2560 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.
