Flash Programmers

SMH Technologies

FlashRunner 2.0 Technology

The key-concepts that summarize FlashRunner 2.0 technology are:

Control

Production
control panel

Programming
times & statistics

Interface
libraries

Connections
pinout

Command

Project
wizard

File transfer
manager

Firmware & software
updates

Windows, Linux & Mac
compatible GUI interface

Security

Encrypted FRB files
to avoid binary hacking

Dump & compare features
of all channels

LOG file & Production
Report file

User permission
management

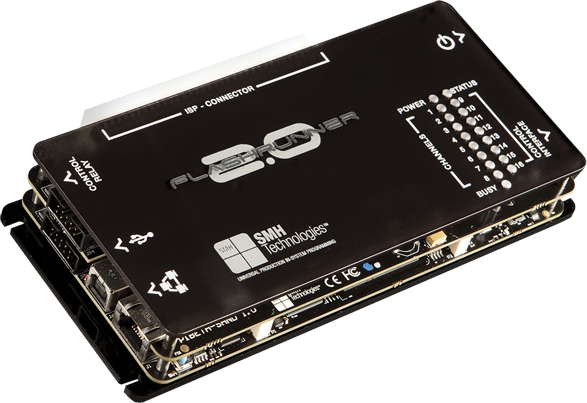

FlashRunner 2.0

Details
  • Compact design for higher mechanical integration
  • Independent ISP channels supporting several communication protocols (JTAG, SPI, I2C, BDM, UART…)
  • 8 digital I/O lines for each channel, coupled with dedicated ground return lines
  • Two programmable output voltage lines
  • 1 GB on-board Dynamic Memory
  • On-board timekeeper and calendar for time-stamped log file
  • Fast Ethernet interface up to 1 Gbit/s (optoisolated, autocrossing feature)
  • USB 2.0 High Speed communication interface (optoisolated)
  • Fixture dedicated Control interface for standalone mode (optoisolated)

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

or

Whatch the video to see how it works.

Watch Video

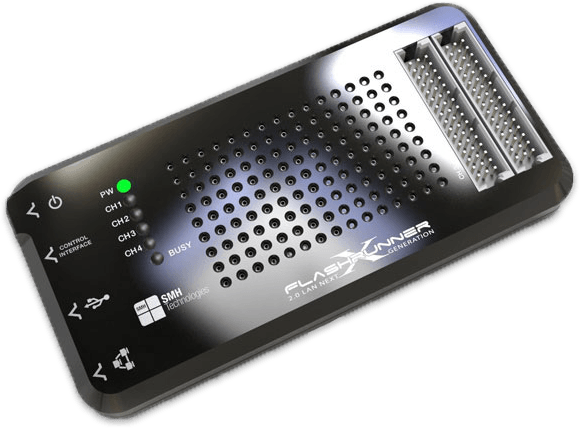

FlashRunner LAN 2.0 NXG

Details
  • Easy fixture integration thanks to the compact size: 142x17,6x70mm
  • Independent ISP channels supporting several communication protocols (JTAG, SPI, I2C, BDM, UART…)
  • 8 digital I/O lines for each channel, coupled with dedicated ground return lines
  • Two programmable output voltage lines
  • 1 GB on-board Dynamic Memory
  • On-board timekeeper and calendar for time-stamped log file
  • Fast Ethernet interface up to 1 Gbit/s (optoisolated, autocrossing feature)
  • USB 2.0 High Speed communication interface (optoisolated)
  • Fixture dedicated Control interface for standalone mode (optoisolated)

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

or

Whatch the video to see how it works.

Watch Video

AVAILABLE MODELS

FR 2.0 FR2P0-04CH

4 true parallel and independent channels

FR 2.0 FR2P0-08CH

8 true parallel and independent channels

FR 2.0 FR2P0-12CH

12 true parallel and independent channels

FR 2.0 FR2P0-16CH

16 true parallel and independent channels

FRLAN2P0NXG

FlashRunner LAN2.0 NXG 4 channel programmer (1 site active). Possible expansion to 4 channels with software upgrades

FRLAN2P0NXG-UPG02

2-channels software upgrade

FRLAN2O0NXG-UPG03

3-channels software upgrade

FRLAN2O0NXG-UPG04

4-channels software upgrade

Algocraft

WriteNow! Technology

Introduction

The global, electronics manufacturing market requires high volumes and low-production costs.Therefore, programming time is a key factor. The WriteNow! technology is targeted to on-board (in-system) programming and has been designed to achieve high-speed programming, while maintaining reliability and flexibility. The WriteNow! technology has been created with speed and reliability as key features, and employs state-of-the art components and techniques to give birth to the WriteNow! Series of In-System Programmers.

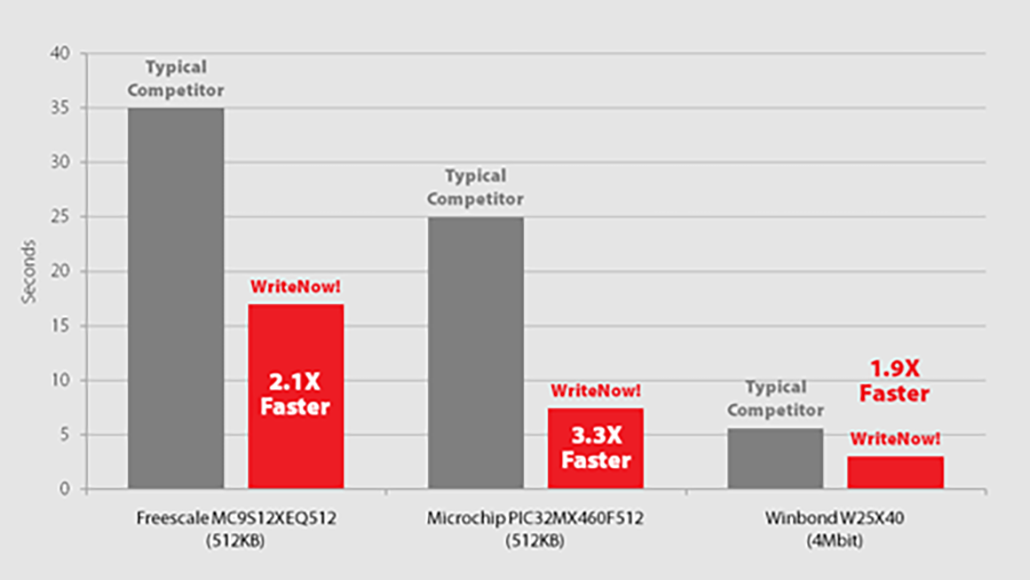

True Parallelism & High Speed

Typically, PCBs are grouped into PCB panels. To program all of the devices in a panel, a traditional approach consists of using either multiple programming tools (with added costs and complexity) or a demultiplexing solution (with slow overall programming time). The WriteNow! technology allows the programming of up to 8 devices at once, drastically reducing programming times, costs, and system complexity. In addition, the WriteNow! technology performances allow to reach the theoretical programming speed for any given device, thus shortening as much as possible the programming phase of the production process.

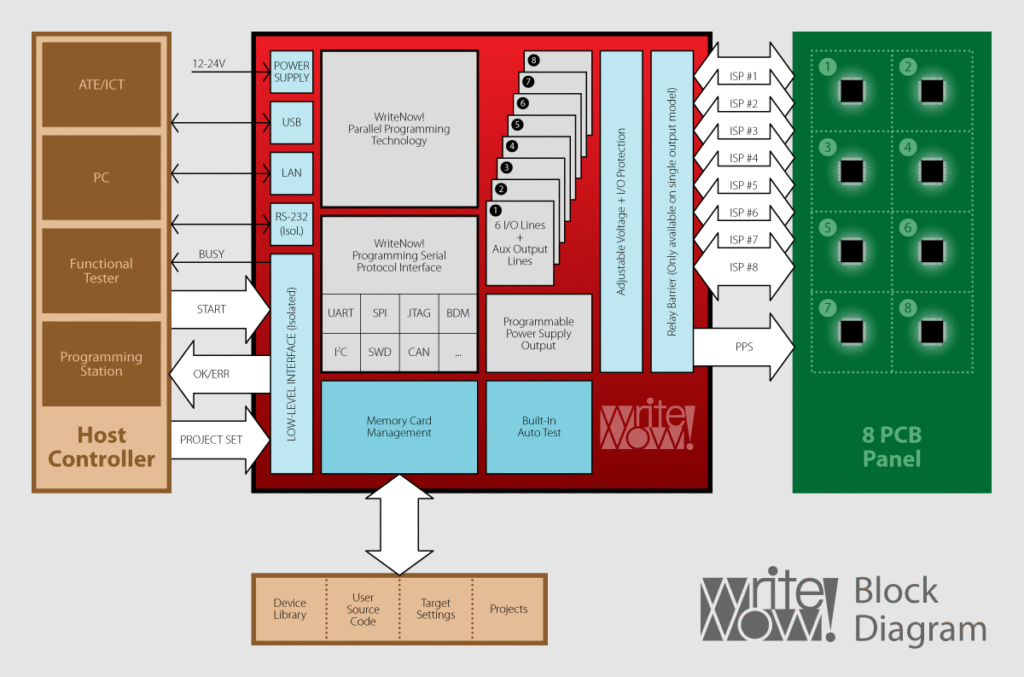

WriteNow! In-System Programmer

Description

Based on the proprietary WriteNow! Technology, the WriteNow! Series of In-System Programmers is a breakthrough in the programming industry. The programmers support a large number of devices (microcontrollers, memories, CPLDs and other programmable devices) from various manufacturers and have a compact size for easy ATE/fixture integration

Details
  • Ultra-fast, universal In-System Programmers
  • True parallel, program up to 8 devices at once
  • Industrial-grade reliability
  • Standalone operations or host controlled
  • Easy to install and to use
  • Compact size, fixture friendly
  • Supports microcontrollers, serial and parallel memories, CPLDs and other programmable devices
  • High-speed, parallel programming
  • Compact size (fixture friendly)
  • Standalone operations or host controlled
  • Designed for easy ATE interfacing
  • Supports multiple interfaces (JTAG, BDM, SPI, I2C, UART, etc.)
  • Memorizes data on a built-in memory card
  • Programmable power supply output (1.5-13V)

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

or

AVAILABLE MODELS

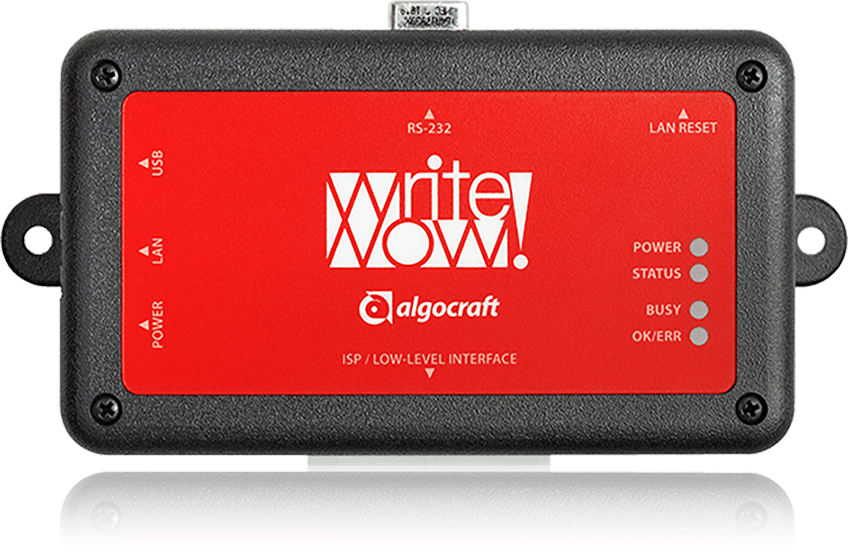

WriteNow! Single-Site In-System Programmer

Ultra-Fast, Universal In-System Programmer

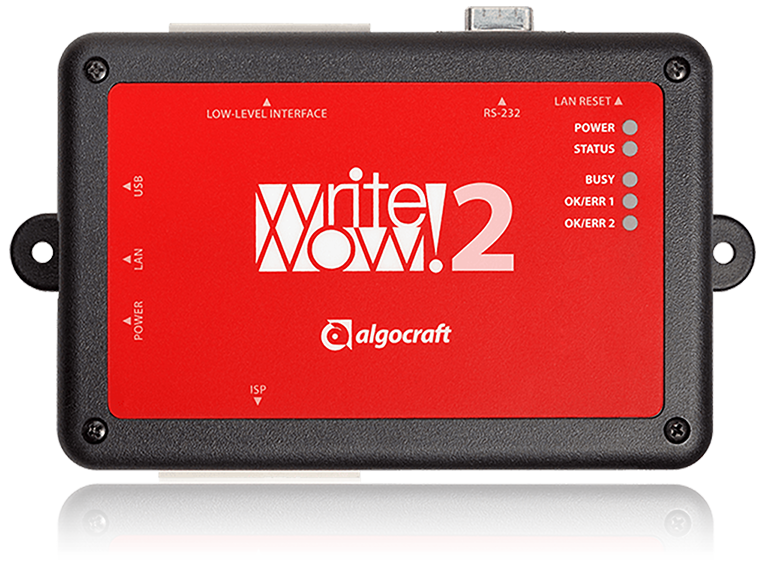

WriteNow! 2-Site In-System Programmer

Programs Up to 2 Devices Simultaneously

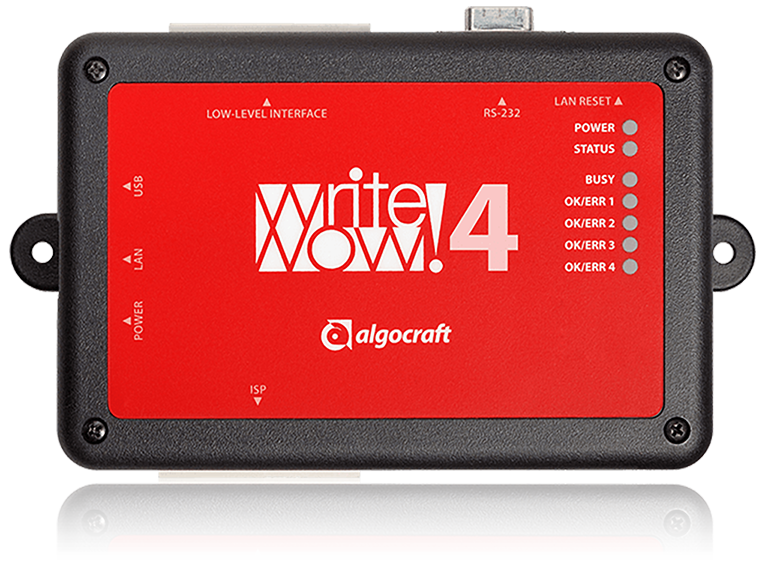

WriteNow! 4-Site In-System Programmer

Programs Up to 4 Devices Simultaneously

WriteNow! 8-Site In-System Programmer

Programs Up to 8 Devices Simultaneously

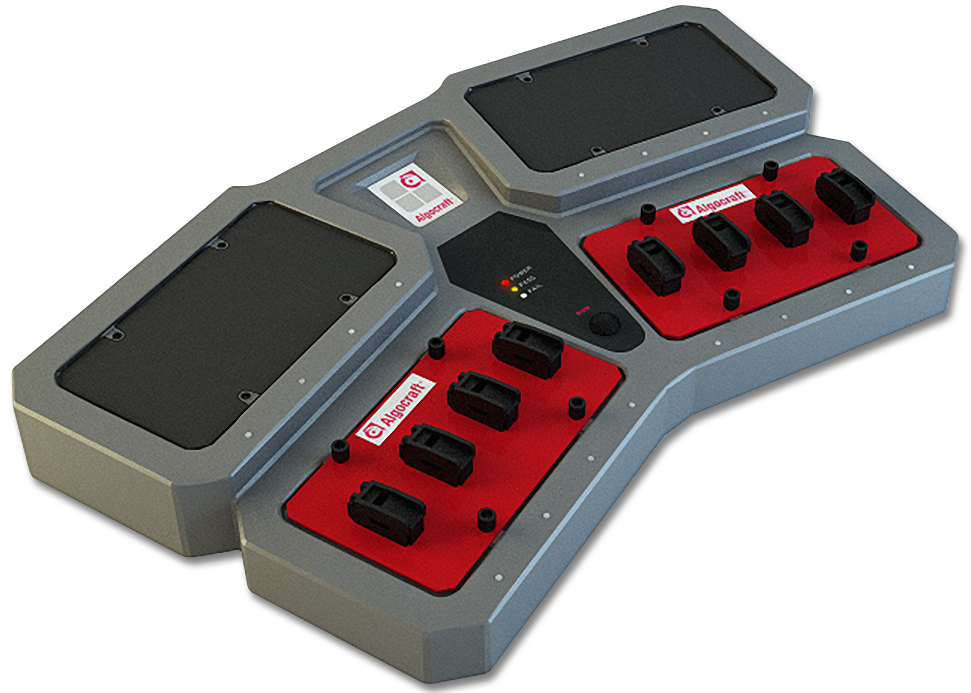

Write! BEFORE Socket Programmer

Description

Socket Adapters are printed circuit boards which connect the programming sites to the base unit. The Socket Adapter (SA) includes the appropriate socket (DIP, SDIP, SOIC, QFP, BGA) and the appropriate electrical connections for programming a specific device.

Details
  • 8 devices at once: Write!BEFORE programs up to 8 devices at once, reducing drastically programming times and costs
  • Stand-Alone Mode: Write!BEFORE programmer works also without PC connection. The operator effects by pressing START button
  • Specialized on MCU supports: Unlike some of our competitors, Write!BEFORE is specialised in MCU programming
  • High-Speed Programming: Write!BEFORE performances allow to reach out theoretical programming speed fpr any given device
  • LAN interface: Write!BEFORE allows to send data production through Internet from a local R&D laboratory directly to any other Write!BEFORE instrument in the world
  • Data cryption: Intellectual Property Protection by crypting the image file
  • Variable Data Programming: Write!BEFORE allows to personalize/customize each single device with variable data, such as Serial Numbers, MAC address, barcode data, etc..
  • ATE interface: Easy implementation into automated programmers and ATE machines by using simple ASCII remote commands
  • Based on Algocraft WriteNow! technology
  • Excellent performance
  • Supports FLASH microcontrollers & serial memories
  • Implementation into available 3rd party automated programmers and ATE machines
  • Up to Eight devices programmable at once
  • Device-Specific Programming Socket
  • Universal and upgradable base unit
  • High-speed I/O
  • High-speed, parallel programming
  • Memorizes data on a built-in memory card
  • Programmable I/O voltage (1.6-5.5V)
  • Standalone operations or host controlled
  • Supports multiple package (DIP, SOIC, TQFP, BGA, etc)
  • 8-Sites Programming Socket
  • START button, PASS/FAILS LEDs
  • Project Wizard: creates and debugs a programming Project in fews guided steps very easily
  • File Merge: combines different programming data sources (boot, application, variable data, etc.) in a single output file
  • File Manager: allows you to see Write!BEFORE file structure and to transfer files with the PC in an easily way

Our datasheet is available for download here.

Request a quote for our product either by Email or Form.

or
