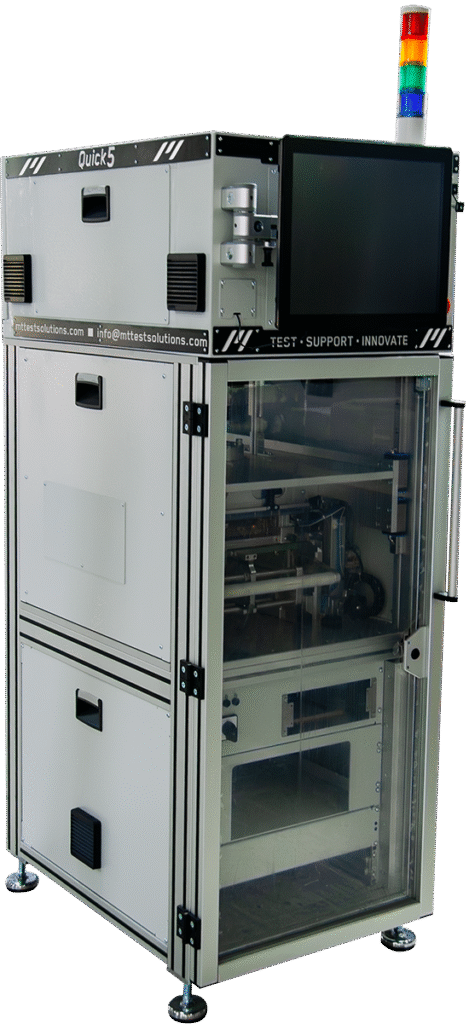

QUICK 5 IN-LINE HANDLER
Quick5 In-Line Handler provides Small Footprint, High-Speed, and No Extra Fixture Cost, as existing fixtures of MFS - D3 Series can be used on this handler!
Ensuring 15-40% Savings compared to other traditional handler platforms. So if you use our TRIO Offline ICT Tester with MFS-D3 Fixture Kits just need to move your existing exchangeable Kit into this Handler and can increase your output to 3 - 5x more compared to the traditional offline testing method. With no Extra Fixture cost!
- Fixture type suitable for Offline TRIO ICT + FCT System
and for Quick5 handler for inline ICT+FCT - Suitable up to 512 Test Points
- Latest Technology: No PLC, so no Annual License Fee
- Dual Stage option
- High precision during contacting
- High Stability due to mechanical solutions in the guiding system
- PXI, LXI, VXI welcomed
- Integration with Functional or ICT Testers
- SMEMA type integration
- CE
- Internal Controller
- Cheap Price
- Quick Delivery
| PCB Width | 50 - 230 mm [1.968 - 9.055 in] |
| PCB Depth | 50 - 231 mm [1.968 - 9.094 in] |
| PCB Thickness | 0.40 - 4 mm [0.016 - 0.157 in] |
| Top Side Clearance | max. 51 mm [2.007 in] |
| Bottom Side Clearance | max. 20 mm [0.787 in] |
| Product Weight | max. 2.6 kg [4.630 lbs] |
| Max. Test Points | 512 pcs. x 1.5 N |
| Max. PCB number during one Test cycle | 1x |
| Transport Direction | Left ➔ Right, Right ➔ Left - selectable by Software |
| Dual-Stage | Ready |
| Drive Force | 4500 N (pneumatic) |
| Dimension (W x D X H) | 600 x 842 x 1700 mm [23.622 x 33.150 x 66.930 in] + Light Tower |
| Transport Height | 920 - 980 mm [36.220 - 38.582 in] |
| Control | MTTest Solutions Microcontroller-Based Control SW - No PLC / No annual Licence Fee! |
| Communication | SMEMA |
This entry-level investment pays back within 1 year for most of our customers, depending on the volume and value of products going to be tested.
When choosing this solution, our customers can start with offline TRIO Test Systems, which we deliver from stock, and later, using the same exact fixture, can just upgrade to the inline tester Quick5, without the need to invest in a new test fixture again.
This system is designed to fit for Start-Up companies and companies that have small volume manufacturing, but in case of quick ramp-up no need to take a long time and high investment as with traditional inline systems. Upgrade time from small volume entry level offline to high volume inline can be as short as 10 weeks (depending on customer expectations).
For more information, contact info@mttestsolutions.com.
Our datasheet is available for download here.
Whatch the video to see how it works.
QUICK 6 IN-LINE HANDLER
The QUICK 6 is a new In-Line Handler from MTTest Solutions.
It is cost-effective, provides a small footprint, and high-speed. The Test System is compatible with our ND-MFS-D4-EXCH-PYL test fixture. These main features, with well-known MTTest Solutions ICT engineering knowledge, ensure a very good start-off ICT Test System for analog and digital measurements. With no Extra Fixture cost!
- Fixture type suitable for Offline TRIO ICT + FCT System
and for Quick6 handler for inline ICT+FCT - Suitable up to 1200 Test Points
- Latest Technology: No PLC, so no Annual License Fee
- Dual Stage option
- High precision during contacting
- High Stability due to mechanical solutions in the guiding system
- PXI, LXI, VXI welcomed
- Integration with Functional or ICT Testers
- SMEMA type integration
- CE
- Internal Controller
- No PLC
- Cheap Price
- Quick Delivery
| PCB Width | 50 - 390 mm [1.968 - 15.354 in] |
| PCB Depth | 50 - 301 mm [1.968 - 11.850 in] |
| PCB Thickness | 0.40 - 4 mm [0.016 - 0.157 in] |
| Top Side Clearance | max. 51 mm [2.007 in] |
| Bottom Side Clearance | max. 20 mm [0.787 in] |
| Product Weight | max. 2.6 kg [4.630 lbs] |
| Max. Test Points | 1200 pcs. x 1.5 N |
| Max. PCB number during one Test cycle | 1x |
| Transport Direction | Left ➔ Right, Right ➔ Left - selectable by Software |
| Dual-Stage | Ready |
| Drive Force | 7000 N at 0.6 MPa (pneumatic) |
| Dimension (W x D X H) | 800 x 942 x 1845 mm [31.496 x 37.086 x 72.637 in] + Light Tower |
| Transport Height | 920 - 980 mm [36.220 - 38.582 in] |
| Control | MTTest Solutions Microcontroller-Based Control SW - No PLC / No annual Licence Fee! |
| Communication | SMEMA |
This entry-level investment pays back within 1 year for most of our customers, depending on the volume and value of products going to be tested.
When choosing this solution, our customers can start with offline TRIO Test Systems, which we deliver from stock, and later, using the same exact fixture, can just upgrade into an inline tester Quick6, without the need to invest in a new test fixture again.
This system is designed to fit for Start-Up companies and companies that have small volume manufacturing, but in case of quick ramp-up no need to take a long time and high investment as with traditional inline systems. Upgrade time from small volume entry level offline to high volume inline can be as short as 10 weeks (depending on customer expectations).
For more information, contact info@mttestsolutions.com.
Our datasheet is available for download here.
