Protection against External Signal Interferences

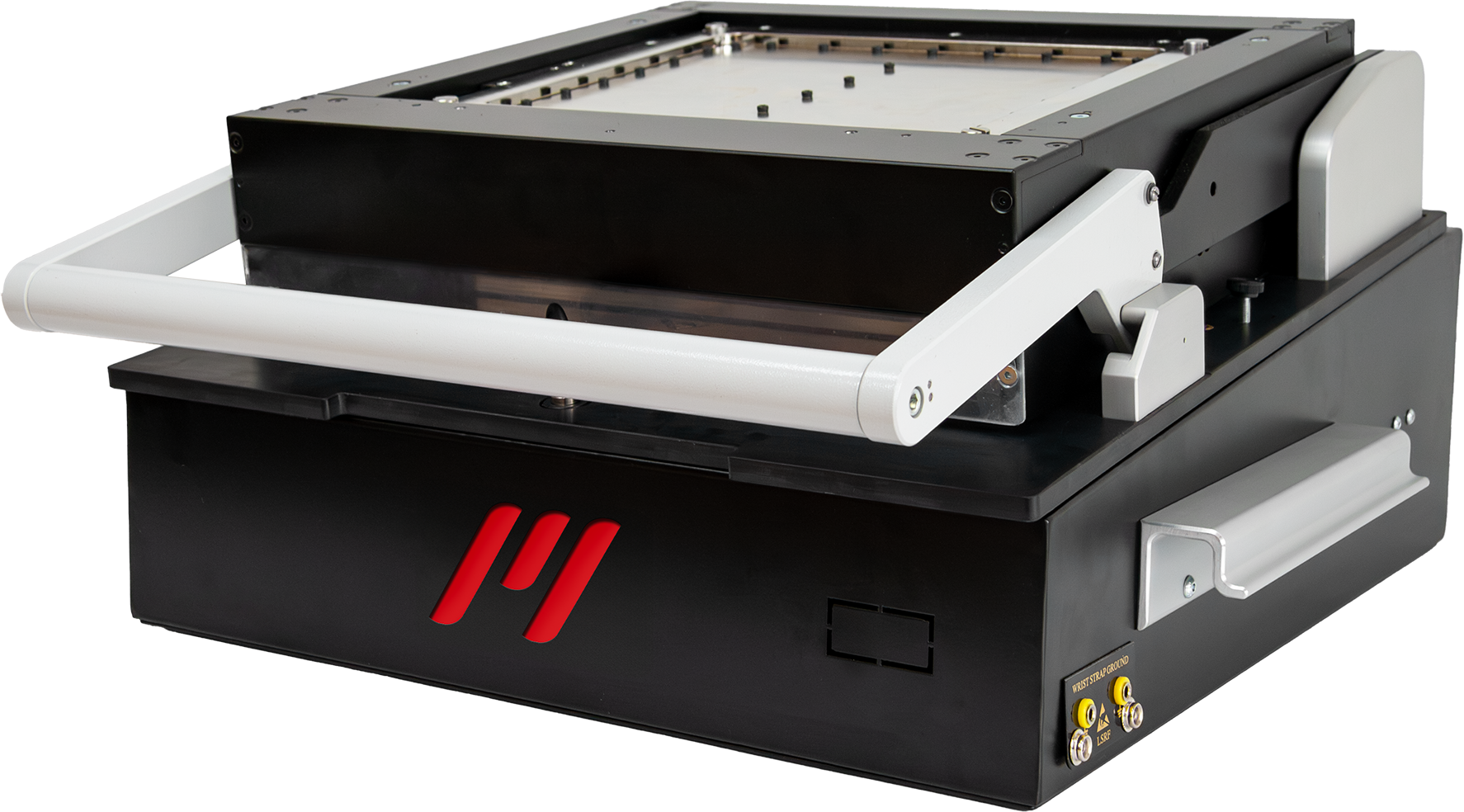

ND-MFS-D3-RF
Details
- Measured shielding attenuation of at least 80 dB
- Qualified from 400 MHz to 6 GHz to cover all common RF bands
- Solid and reliable construction from a solid aluminum block
- Fully removable bottom plate allows easy and effective wiring
- Reliable overlapping seams on all permanent interconnections
- Rounded side corners for better RF reflection characteristics
- Expandable chamber to extend the RF environment
- Large cabling access plate, removable and easy to customize
- Optional internal absorber to reduce internal reflections
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

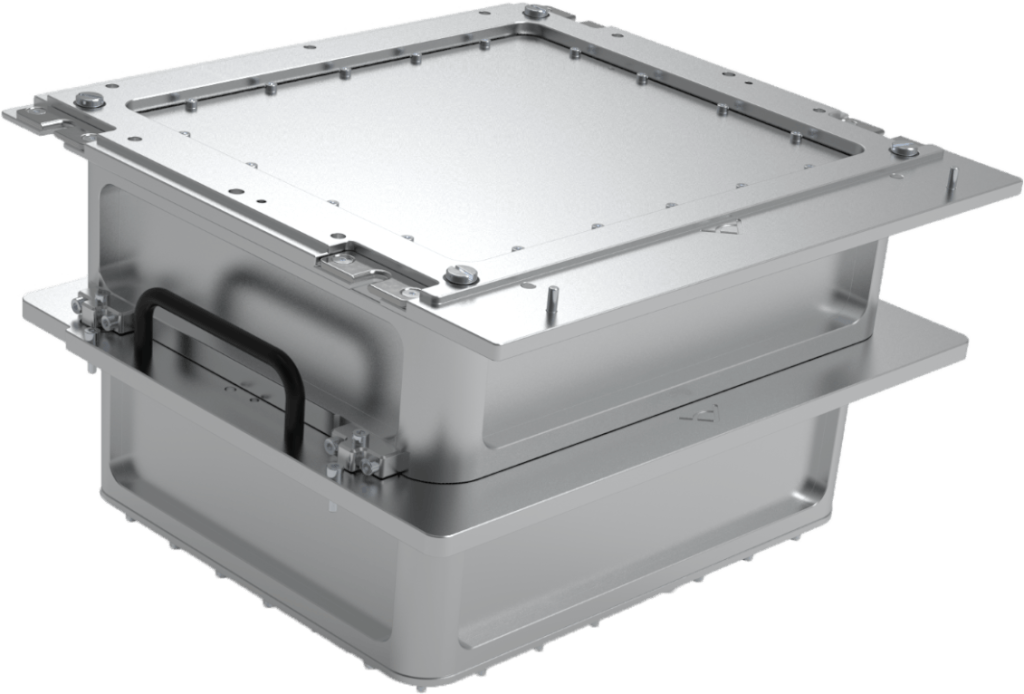

ND-RF-EXCH-D3
Details
- Measured shielding attenuation of at least 80 dB
- Qualified from 400 MHz to 6 GHz to cover all common RF bands
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

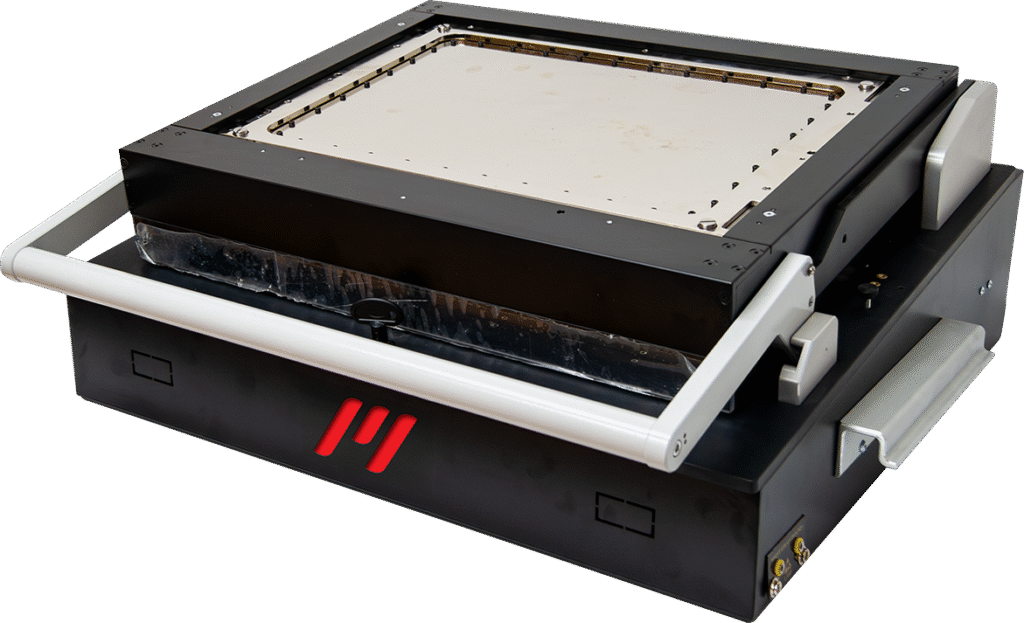

ND-MFS-D4-RF
Details
- External Dimension (width x depth x height) with Handles:
-
729 x 656 x 280 [mm]
28.701 x 25.827 x 11.024 [in] - Usable Area:
-
325 x 206 [mm]
12.795 x 8.110 [in] - Measured shielding attenuation of at least 75 dB
- Qualified from 400 MHz to 6 GHz to cover all common RF bands
- ESD Safe & Easy Maintenance
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

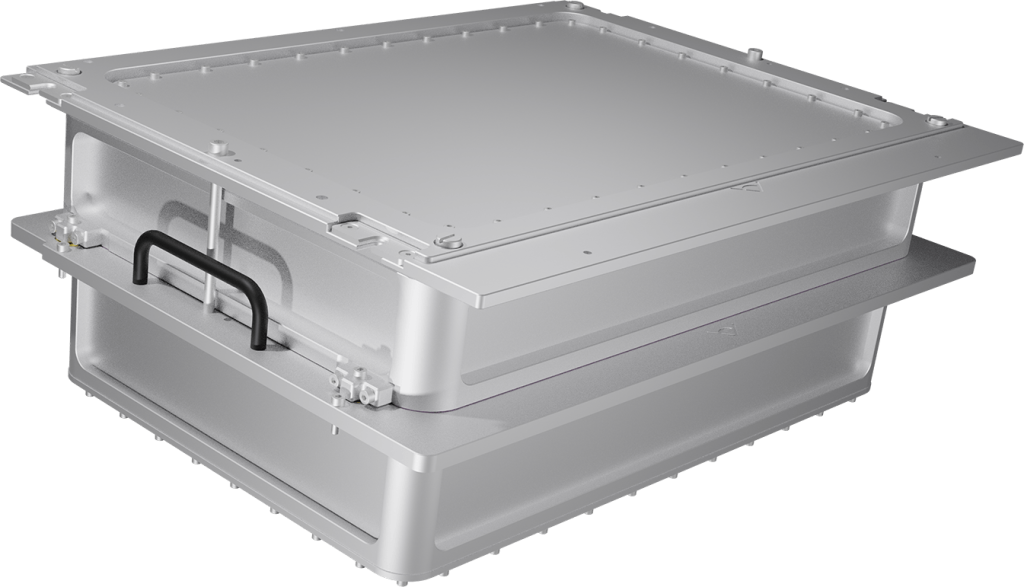

ND-RF-EXCH-D4
Details
- Usable Area:
- 325 x 206 [mm]
12.795 x 8.110 [in] - Measured shielding attenuation at least 75 dB
- Qualified from 400 MHz to 6 GHz to cover all common RF bands
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.
