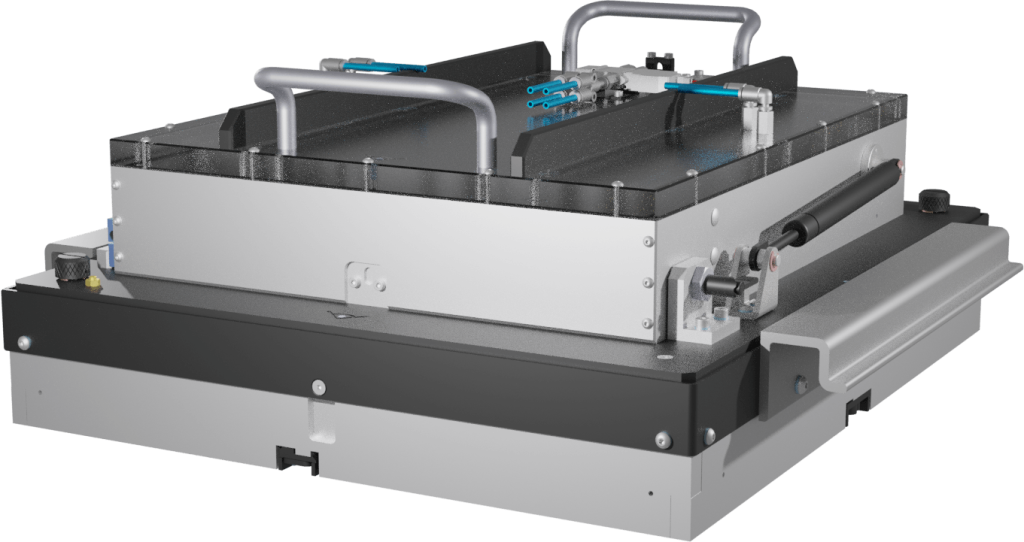

KEYSIGHT - AGILENT - HP 3070
VFS-E90-2ST-HP3070-VC09
- External Dimension (width x depth x height) with Handles:
-
495 x 467 x 203 [mm]
19.488 x 18.386 x 7.992 [in] - Usable Area:
-
248 x 258 [mm]
9.763 x 10.158 [in] - The Fixture includes a vacuum cover
- Usable Cover Types:
- Mechanical
- Vacuum
- Dual Stage
- Installation height test probe bottom:
- FCT- 21.3 mm / ICT-16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

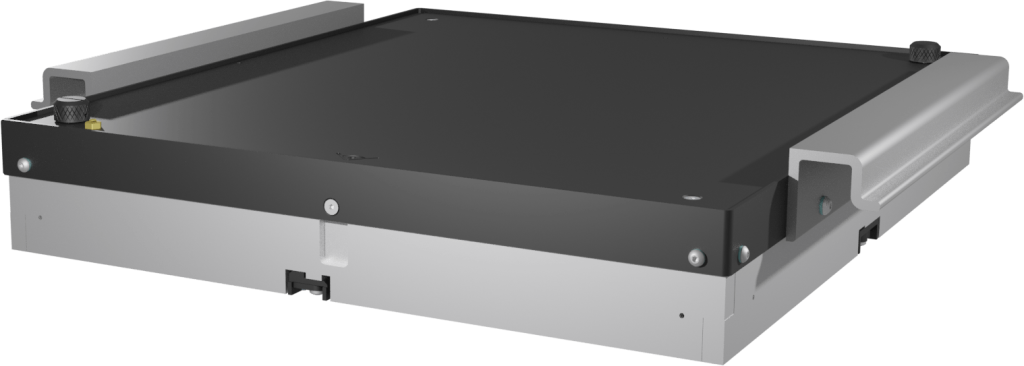

KEYSIGHT - AGILENT - HP 3070
VFS-E90-HP3070
- External Dimension (width x depth x height) with Handles:
- 495 x 467 x 87 [mm]
19.488 x 18.386 x 3.425 [in] - Usable Area (not DUT size):
- 320 x 400 [mm]
12.598 x 15.748 [in] - The Fixture doesn’t include a cover
- Usable Cover Types:
- Mechanical
- Vacuum
- Installation height test probe bottom:
- 16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.
KEYSIGHT - AGILENT - HP 3070
DOUBLE - BANK

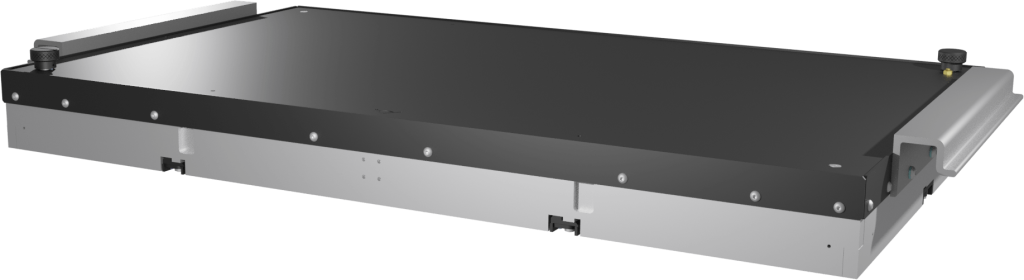

VFS-E92-HP 3070
- External Dimension (width x depth x height) with Handles:
- 857 x 465 x 93 [mm]
33.740 x 18.307 x 3.661 [in] - Usable Area (not DUT size):
- 680 mm x 400 [mm]
26.772 in x 15.748 [in] - The Fixture doesn’t include a cover
- Usable Cover Types:
- Mechanical
- Vacuum
- Installation height test probe bottom:
- 16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.
KEYSIGHT - AGILENT - HP 3070

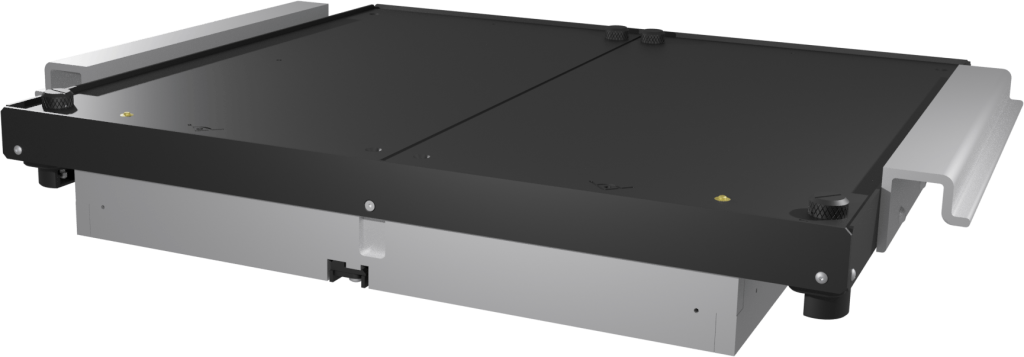

VFT-E91-HP 3070
- External Dimension (width x depth x height) with Handles:
-
595 x 465 x 87 [mm]
23.425 x 18.307 x 3.425 [in] - Usable Area (not DUT size):
-
200 x 380 [mm]
7.874 in x 14.960 [in] - The Fixture doesn’t include a cover
- Usable Cover Types:
- Mechanical
- Vacuum
- Installation height test probe bottom:
- 16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.
TERADYNE - GENRAD - SPECTRUM

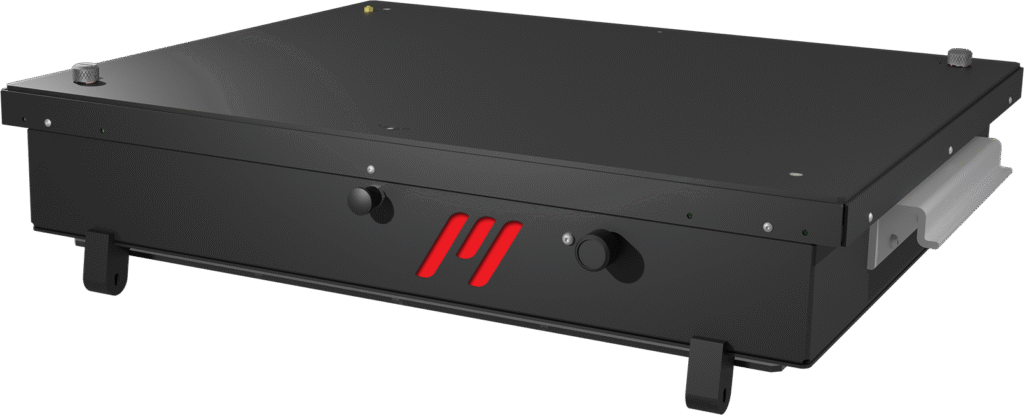

VFS-E3-SPECTRUM 88XX-SL
- External Dimension (width x depth x height) with Handles:
-
674 x 532 x 158 [mm]
26.535 x 20.944 x 6.220 [in] - Usable Area (not DUT size):
-
480 x 350 [mm]
18.898 x 13.780 [in] - The Fixture doesn’t include a cover
- Usable Cover Types:
- Mechanical
- Vacuum
- Installation height test probe bottom:
- 16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

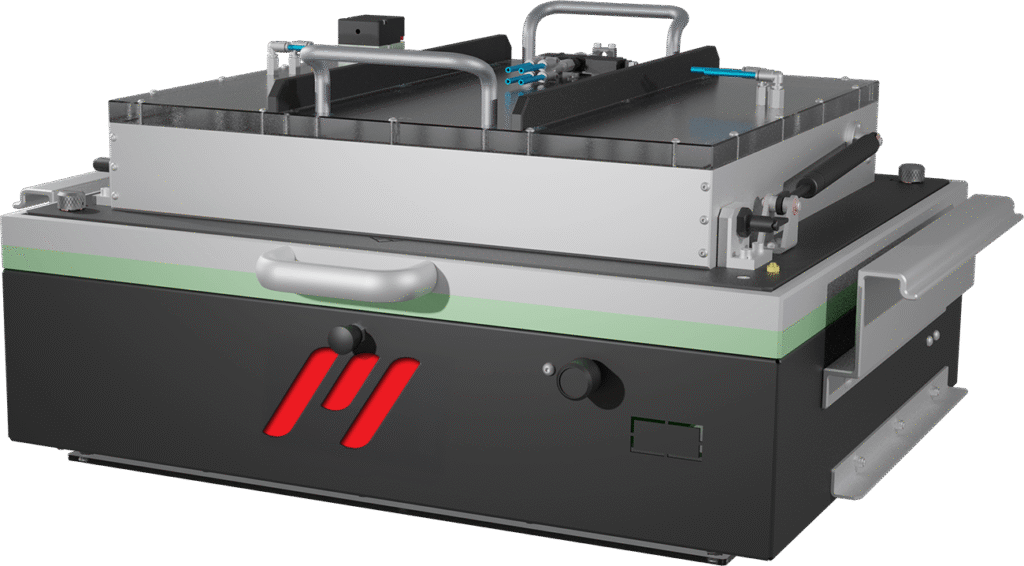

TERADYNE - GENRAD - 15/15 -
DUAL STAGE WITH VACUUM COVER
VFS-E3-2ST-TSLH-15/15-VC10
- External Dimension (width x depth x height) with Handles:
-
661 x 517 x 296 [mm]
26.023 x 20.354 x 11.653 [in] - Usable Area:
-
354 x 234 [mm]
13.937 x 9.212 [in] - The Fixture includes a vacuum cover
- Usable Cover Types:
- Vacuum
- Dual Stage
- Installation height test probe bottom:
- FCT- 21.3 mm / ICT-16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.
TERADYNE - GENRAD - 15 / 15

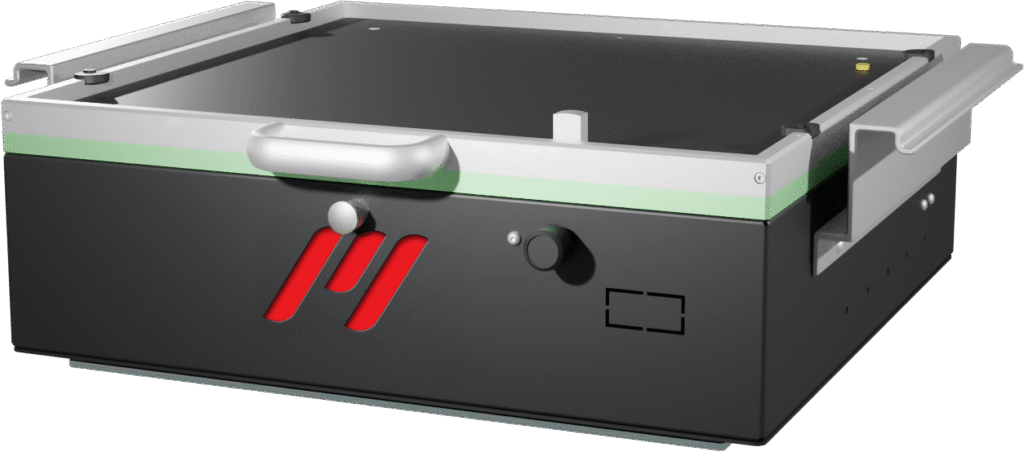

VFS-E3-TSLH-15/15
- External Dimension (width x depth x height) with Handles:
-
661 x 517 x 175 [mm]
26.023 x 20.354 x 6.890 [in] - Usable Area (not DUT size):
-
350 x 380 [mm]
13.779 x 14.960 [in] - The Fixture doesn’t include a cover
- Usable Cover Types:
- Mechanical
- Vacuum
- Installation height test probe bottom:
- 16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.
TERADYNE - GENRAD - 18 / 18

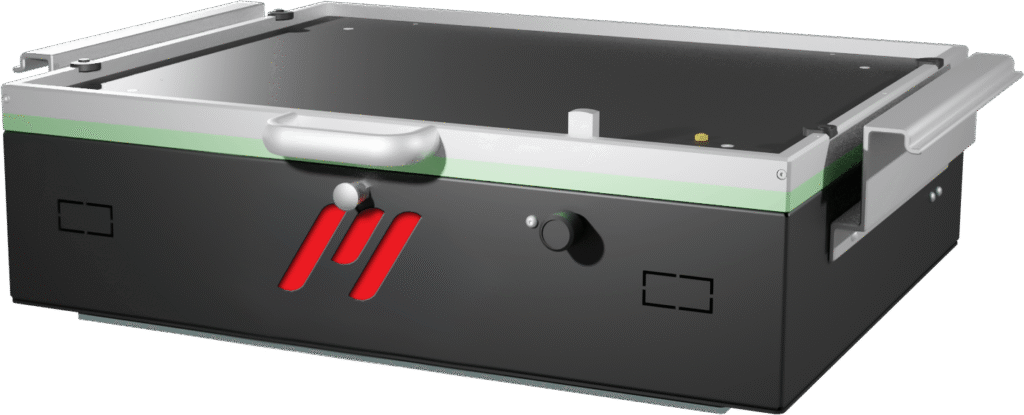

VFS-E2-TS121-18/18
- External Dimension (width x depth x height) with Handles:
-
678 x 515 x 175 [mm]
26.693 x 20.276 x 6.890 [in] - Usable Area (not DUT size):
-
420 x 380 [mm]
16.535 x 14.960 [in] - The Fixture doesn’t include a cover
- Usable Cover Types:
- Mechanical
- Vacuum
- Installation height test probe bottom:
- 16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.
TERADYNE - GENRAD - 33 / 33

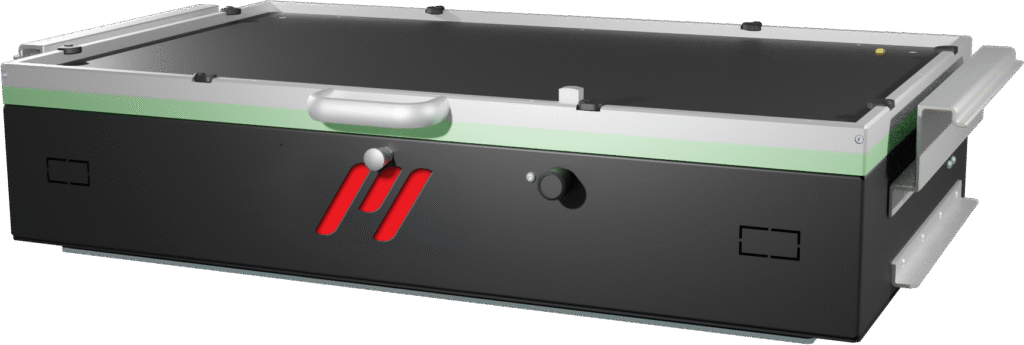

VFS-E4-TS121-33/33
- External Dimension (width x depth x height) with Handles:
-
875 x 515 x 175 [mm]
34.449 x 20.276 x 6.890 [in] - Usable Area (not DUT size):
-
600 x 380 [mm]
23.622 x 14.960 [in] - The Fixture doesn’t include a cover
- Usable Cover Types:
- Mechanical
- Vacuum
- Installation height test probe bottom:
- 16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

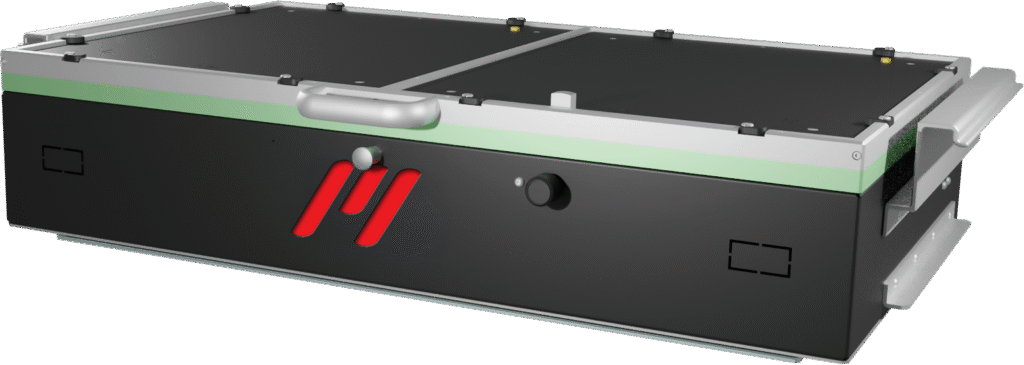

TERADYNE - GENRAD - 33 / 33
VFT-E4-TS121-33/33
- External Dimension (width x depth x height) with Handles:
-
875 x 515 x 175 [mm]
34.449 x 20.276 x 6.890 [in] - Usable Area (not DUT size):
-
320 x 300 [mm]
12.598 x 11.811 [in] - The Fixture doesn’t include a cover
- Usable Cover Types:
- Mechanical
- Vacuum
- Installation height test probe bottom:
- 16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

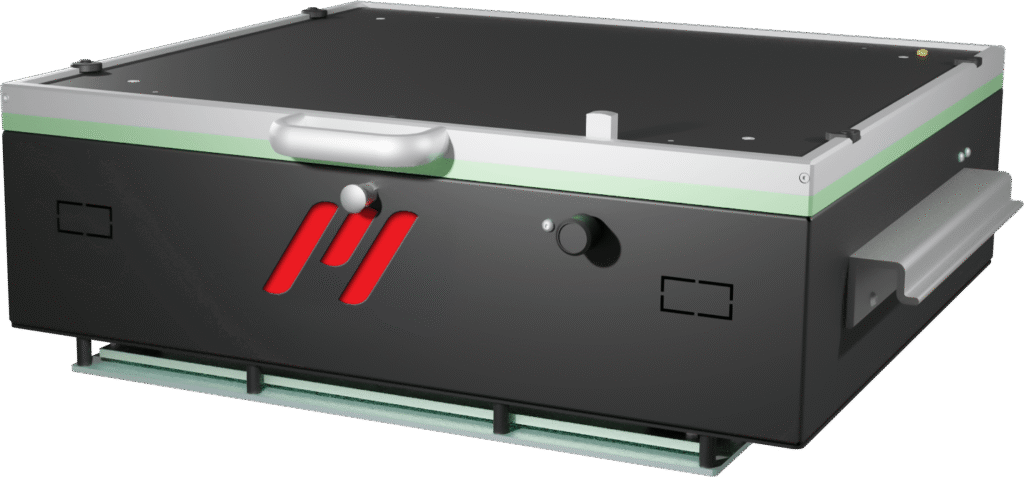

DIGITALTEST MTS 300
VFS-E14-DT-MTS300
- External Dimension (width x depth x height) with Handles:
-
663 x 515 x 201 [mm]
26.102 x 20.276 x 7.914 [in] - Usable Area (not DUT size):
-
420 x 420 [mm]
16.535 x 16.535 [in] - The Fixture doesn’t include a cover
- Usable Cover Types:
- Mechanical
- Vacuum
- Installation height test probe bottom:
- 16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.
MARCONI - AEROFLEX

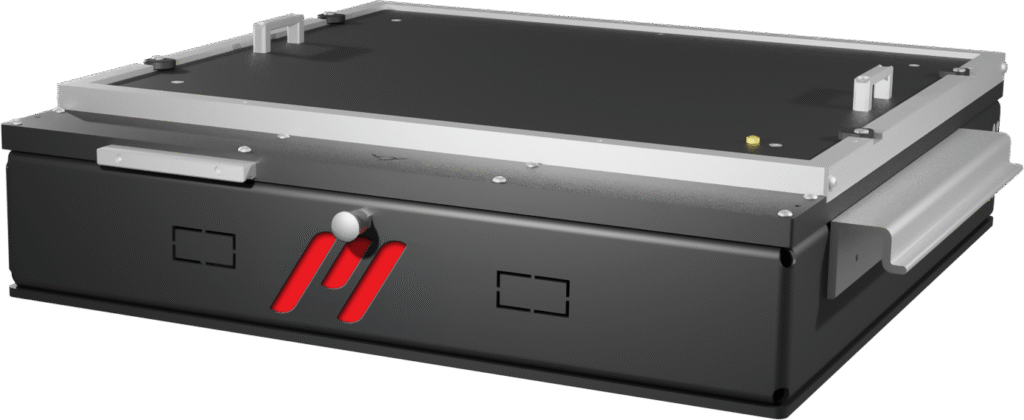

VFS-E2-MC4200 4210
- External Dimension (width x depth x height) with Handles:
-
607 x 544 x 148 [mm]
23.898 x 21.417 x 5.827 [in] - Usable Area (not DUT size):
-
370 mm x 380 [mm]
14.567 x 14.961 [in] - The Fixture doesn’t include a cover
- Usable Cover Types:
- Mechanical
- Vacuum
- Installation height test probe bottom:
- 16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.
MARCONI - AEROFLEX

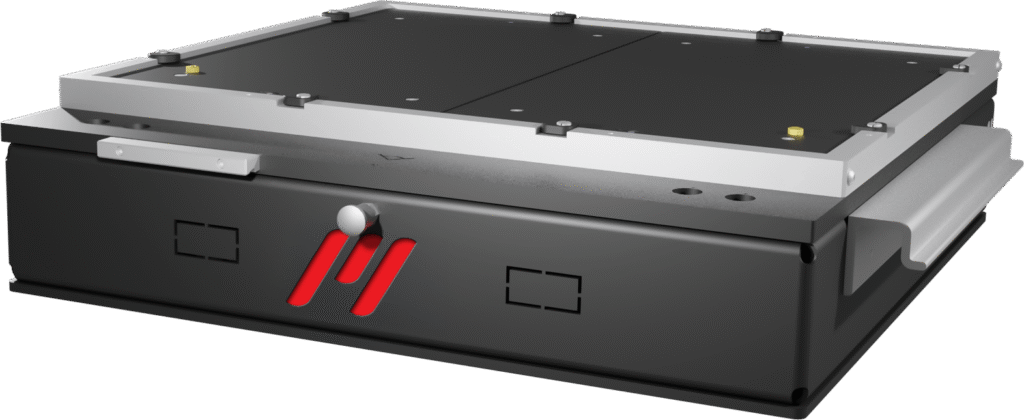

VFT-E2-MC4200 4210
- External Dimension (width x depth x height) with Handles:
- 607 x 544 x 144 [mm]
23.898 x 21.417 x 5.669 [in] - Usable Area (not DUT size):
- 160 mm x 360 [mm]
6.299 x 14.173 [in] - The Fixture doesn’t include a cover
- Usable Cover Types:
- Mechanical
- Vacuum
- Installation height test probe bottom:
- 16 mm
- Alum-A-Grip Handles for transport and lift
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.
