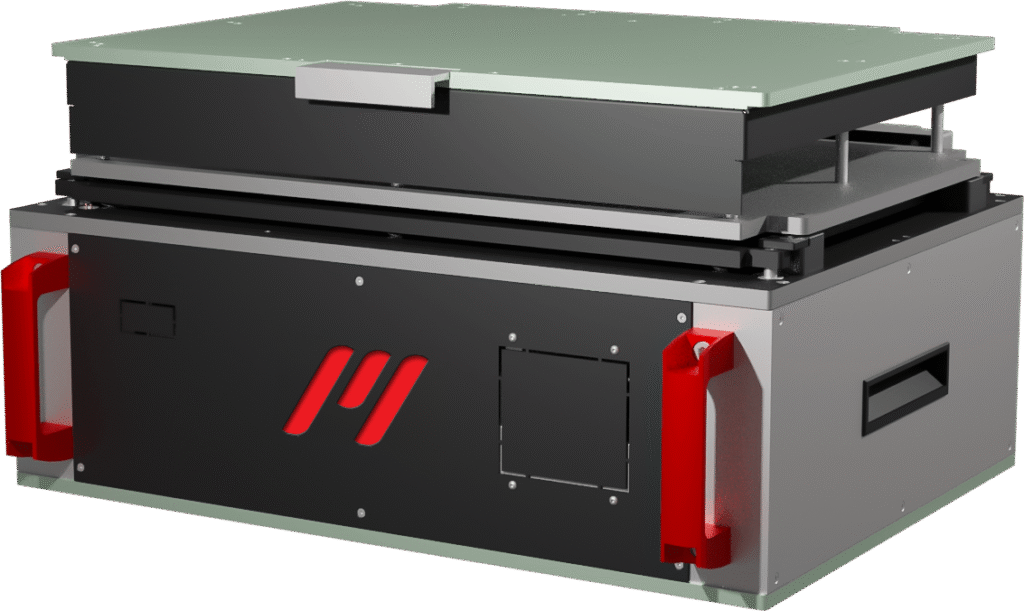

TRI - TR5001 SERIES II - QDI
ILFS-TR5001-SII-QDI-ITA-22
- External Dimension (width x depth x height) with Handles:
- 538 x 478 x 286 [mm]
21.18 x 18.81 x 11.26 [in] - DUT sizes:
- 1 PCB 70 x 70 [mm] to maximum 450 x 300 [mm]
2.75 x 2.75 [in] to maximum 17.71 x 11.81 [in] - 2 PCB 70 x 70 [mm] to maximum 200 x 300 [mm]
2.75 x 2.75 [in] to maximum 7.87 x 11.81 [in]
In case of the TOP test the max. DUT size to be clarified.
- Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 4096 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

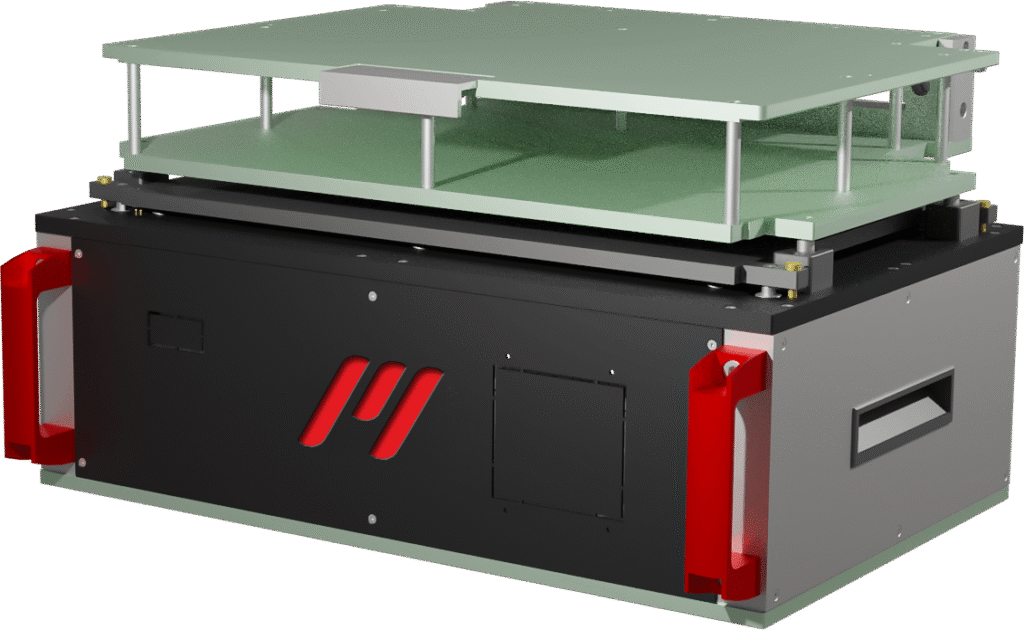

TRI - TR5001 SERIES II - POGO
ILFS-TR5001 SII-POGO-36
- External Dimension (width x depth x height) with Handles:
-
568 x 533 x 310 [mm]
22.36 x 21 x 12.2 [in] - DUT sizes:
-
70 x 70 [mm] to maximum 500 x 360 [mm]
2.75 x 2.75 [in] to maximum 19.68 x 14.13 [in]
In case of the TOP test the max. DUT size to be clarified.
- Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 4096 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

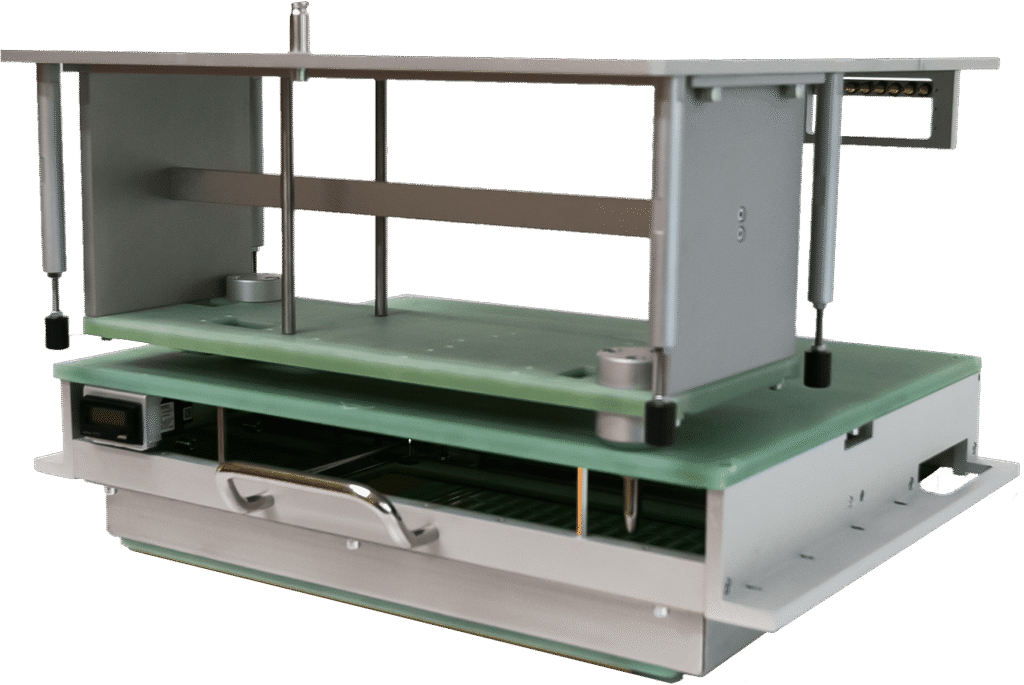

TERADYNE 18 SLOT INLINE FIXTURE KIT
ILFS-TER18SL
- External Dimension (width x depth x height) with Handles:
-
531 x 465 x 366 [mm]
20.91 x 18.30 x 14.40 [in] - Max DUT size:
-
420 x 254 [mm]
16.53 x 10.00 [in] - Min DUT size:
-
50 x 40 [mm]
1.97 x 1.57 [in] - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 2984 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

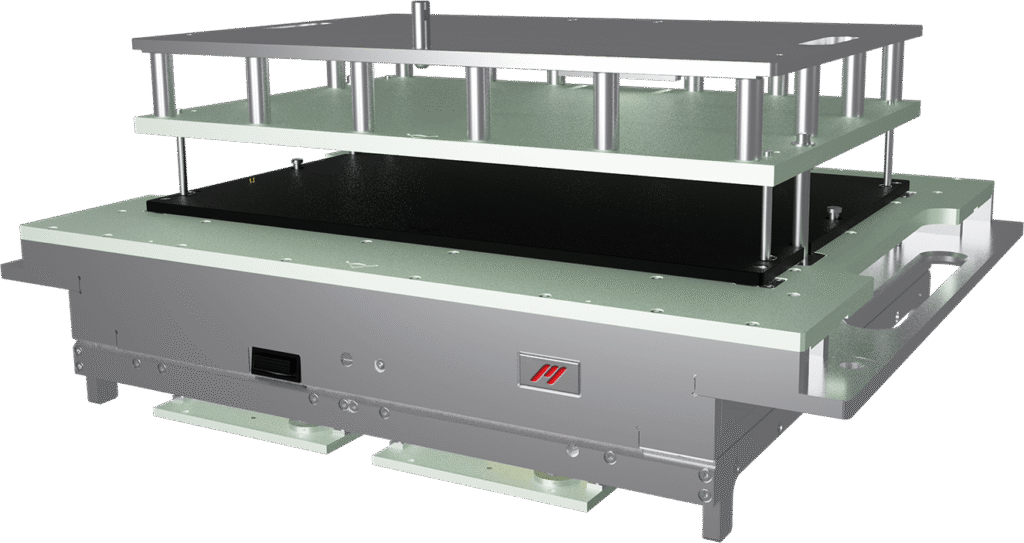

INLINE FIXTURE KIT FOR
TERADYNE MULTI-SITE TSH-5X
ILFS-TSH-5SLOT
- External Dimension (width x depth x height) with Handles:
-
640 x 494 x 292 [mm]
25.20 x 19.45 x 11.50 [in] - Max DUT size:
-
349mm x 450 [mm]
13.74 x 17.72 [in] - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 2x 2560 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

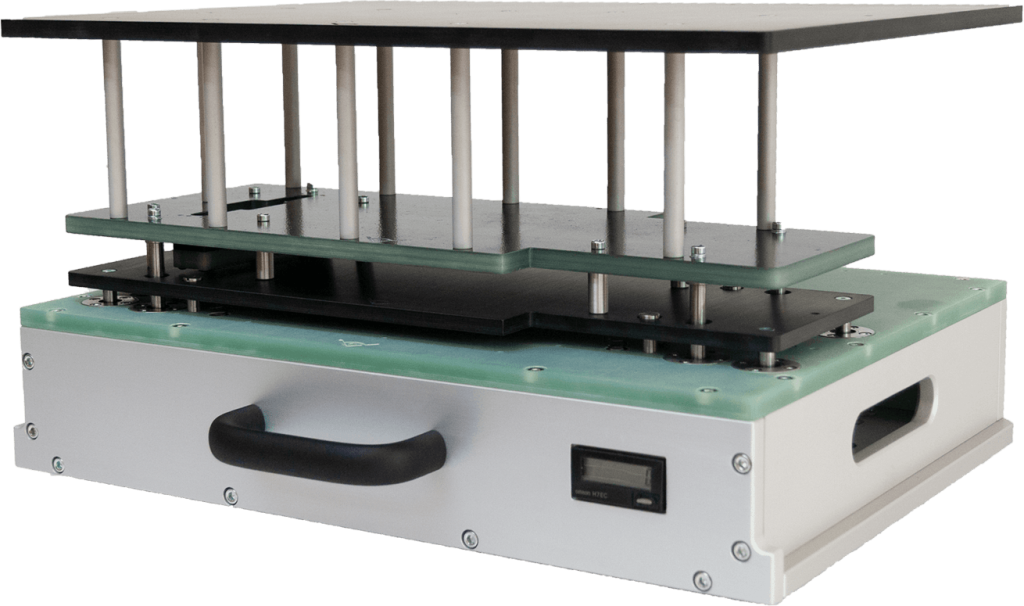

KEYSIGHT - AGILENT i1000D SERIES
ILFS-i1000D
- External Dimension (width x depth x height) with Handles:
-
470 x 395 x 256 [mm]
18.50 x 15.55 x 10.10 [in] - Max DUT size:
-
430 x 300 [mm]
16.93 in x 11.81 [in] - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-20.5 mm
- Maximum 3456 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

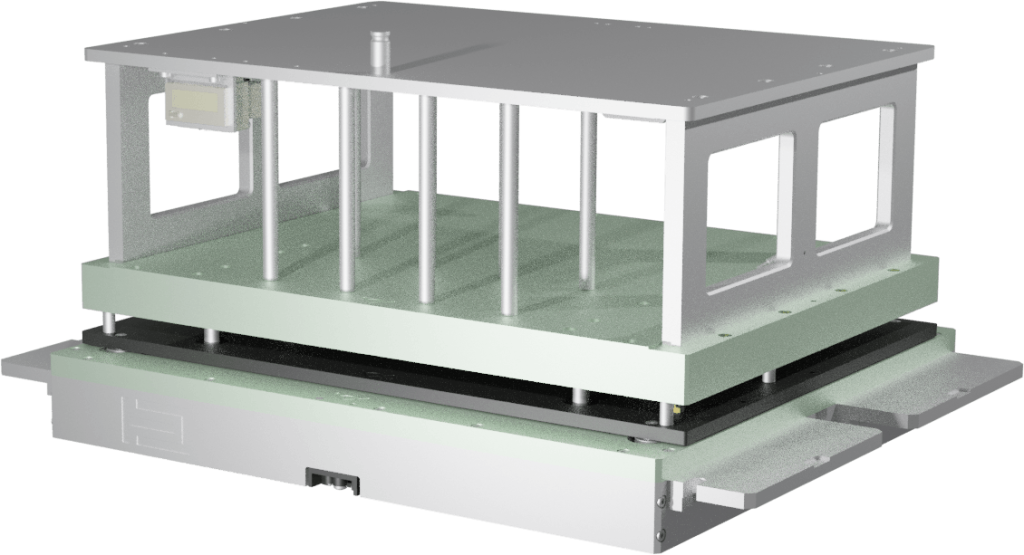

KEYSIGHT - AGILENT i3070 SERIES 5i
ILFS-i3070-5i
- External Dimension (width x depth x height) with Handles:
-
565.2 x 402.6 x 252 [mm]
22.25 x 15.85 x 9.92 [in] - Max DUT size:
-
350 x 349 [mm]
13.78 in x 13.74 [in] - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 2592 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

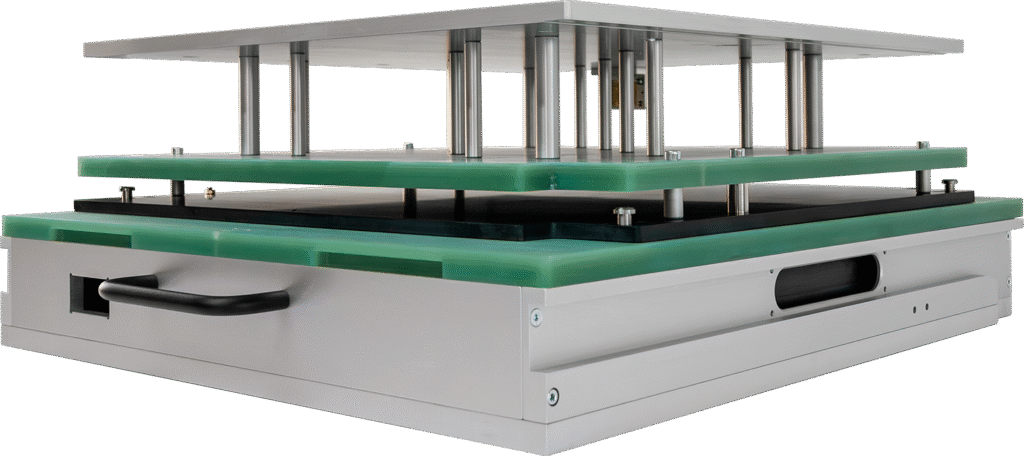

KEYSIGHT i7090 BOARD TEST SYSTEM
ILFS-i7090
- External Dimension (width x depth x height) with Handles:
-
480 x 597 x 212 [mm]
18.90 x 23.50 x 8.35 [in] - Max Board size:
-
460 x 430 [mm]
18.11 x 16.93 [in] - Min board size:
-
50 x 50 [mm]
1.97 x 1.97 [in] - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 2560 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

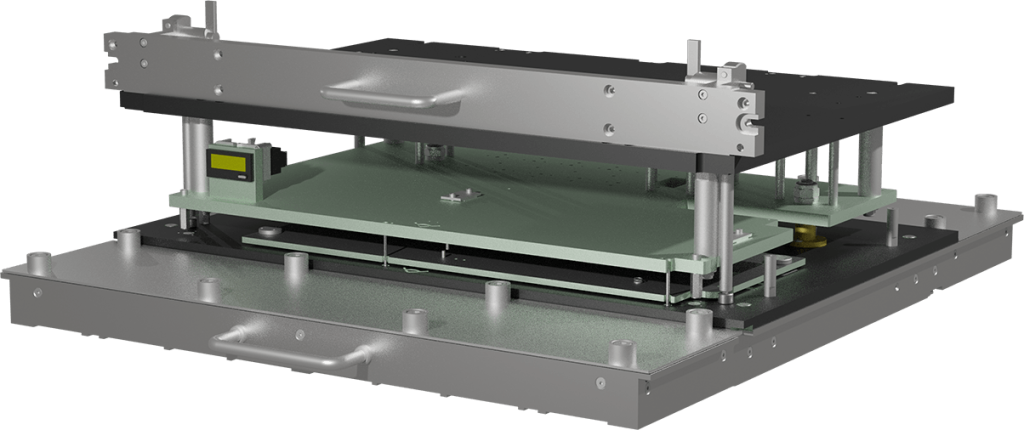

INLINE SPEA 3030
ILFS-2A-SPEA3030-BOT44x72-D
- External Dimension (width x depth x height) with Handles:
-
630 x 730.5 x 247 [mm]
24.80 x 28.76 x 9.72 [in] - DUT size to be clarified.
- Top and Bottom test
- Installation height of test probes with receptacles:
- bottom-16 mm
- top-16 mm
- Maximum 6336 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

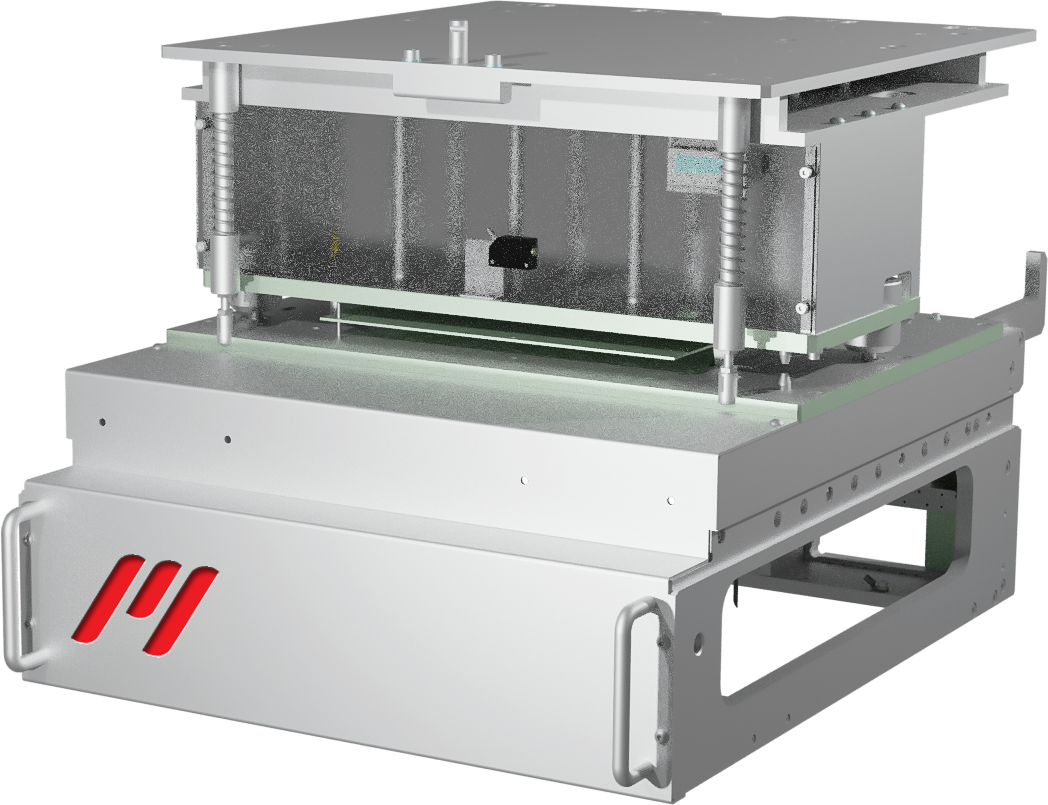

INLINE SPEA 3030 FOR IPTE HANDLER
ILFS-SPEA-3030
- External Dimension (width x depth x height) with Handles:
- 479 x 662 x 436 [mm]
18.86 x 26.06 x 17.16 [in] - Max DUT size:
- 175 mm (fix) x 330 mm (variable)
6.89 in x 13.00 in - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 2048 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

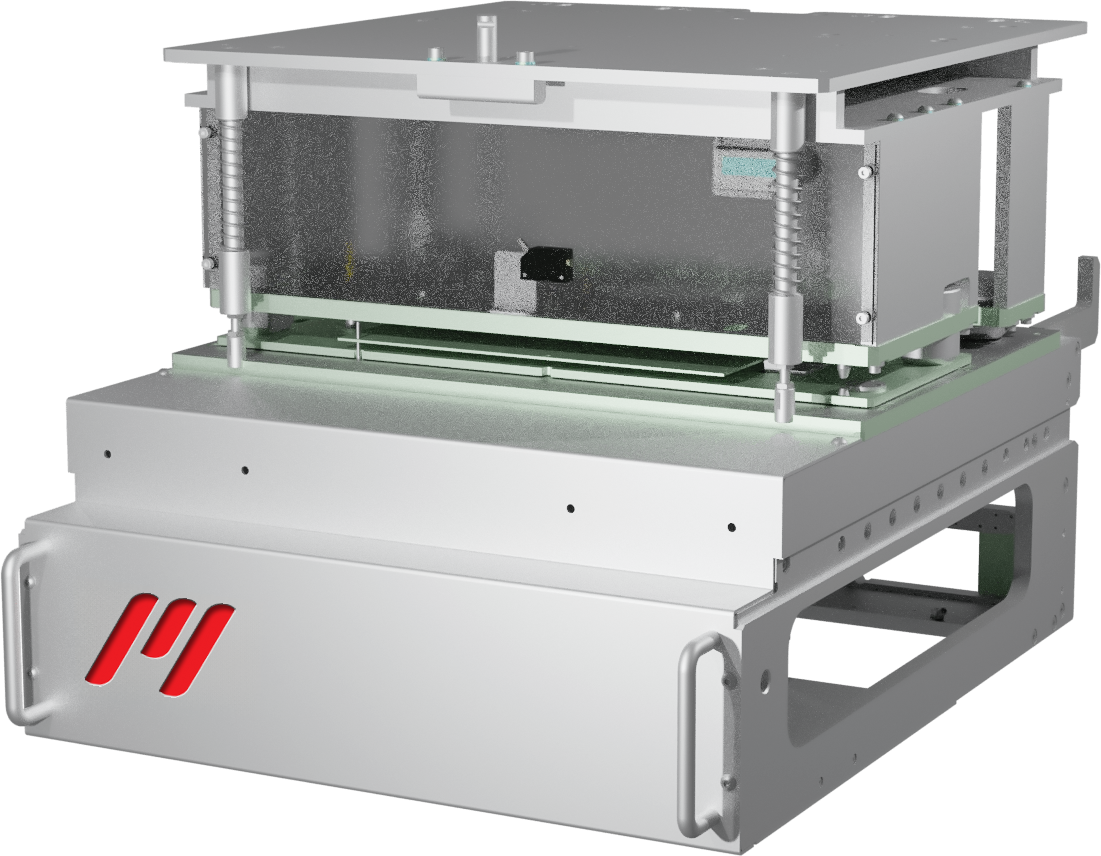

INLINE SPEA 3030 FOR IPTE HANDLER
ILFS-2A-SPEA-3030
- External Dimension (width x depth x height) with Handles:
-
479 x 662 x 436 [mm]
18.86 x 26.06 x 17.16 [in] - Max DUT size:
-
175 mm (fix) x 330 mm (variable)
6.89 in x 13.00 in - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 2048 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

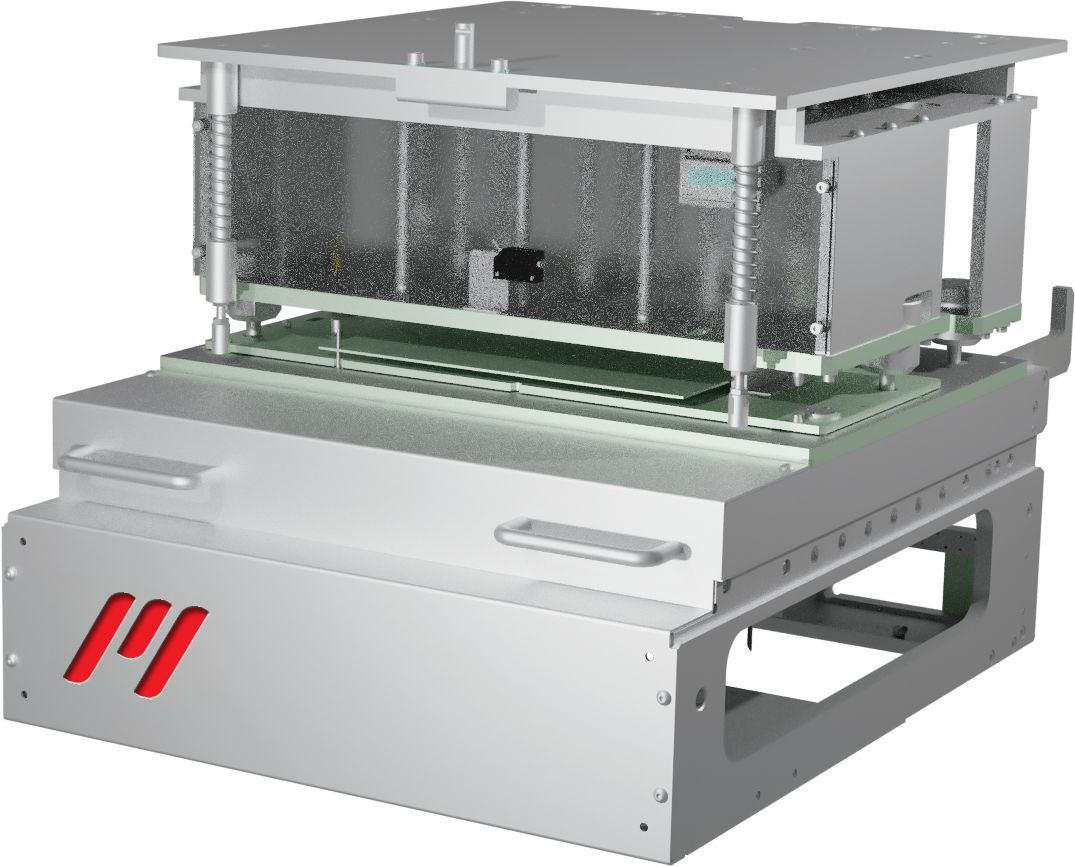

INLINE SPEA 3030 - 190 FOR IPTE HANDLER
ILFS-2A-SPEA-3030-190
- External Dimension (width x depth x height) with Handles:
-
479 x 662 x 436 [mm]
18.86 x 26.06 x 17.16 [in] - Max DUT size:
-
190 mm (fix) x 330 mm (variable)
7.48 in x 13.00 in - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 2048 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.

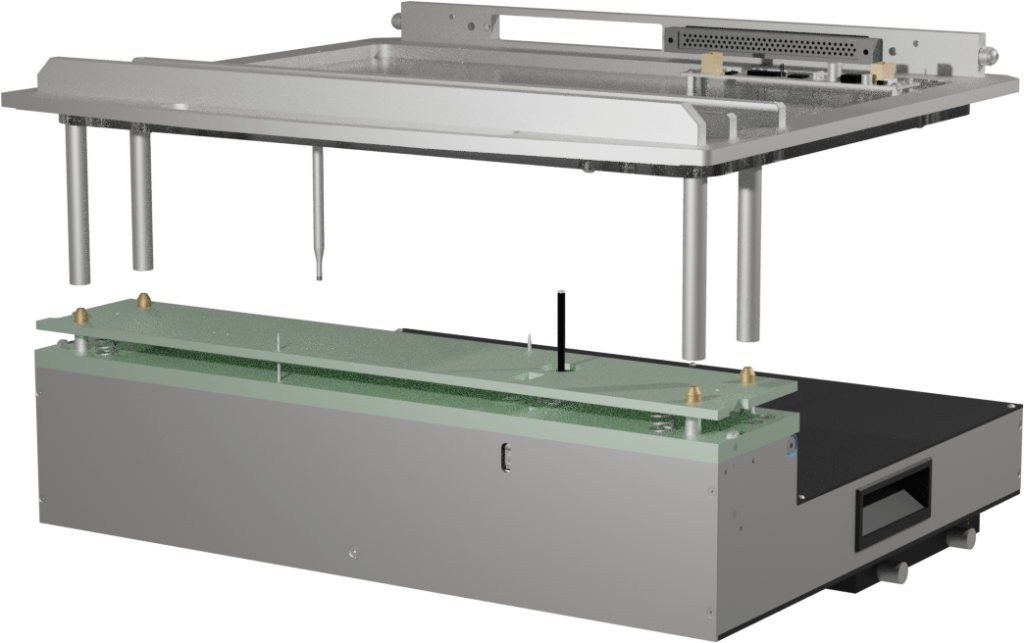

INLINE FIXTURE FOR 6 TL
HANDLER WITH VPC G25
ILFS-6TL-VPC-G25
- External Dimension (width x depth x height) with Handles:
-
456 x 411 x 270.4 [mm]
17.95 x 16.18 x 10.64 [in] - Useable Area:
-
410 x 384 [mm]
16.14 x 15.12 [in] - Top and Bottom test
- Installation height test probe:
- bottom-16 mm
- top-16 mm
- Maximum 640 channels
Our datasheet is available for download here.
Request a quote for our product either by Email or Form.
